2003-2009 Mercedes E320 / E350 / E500 / E550 W211 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit

$150.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Steel Braided Brake Lines: Performance You Can Trust

Stainless braided brake lines kit

Take your driving to the next level. Whether you're navigating fast roads or pushing limits on the track, precision and reliability in braking are essential. Our stainless braided brake lines eliminate the spongy pedal feel caused by expanding OEM rubber hoses and deliver consistent braking performance.

Why Choose Braided Brake Lines?

✔ Eliminates spongy pedal feel under hard braking
✔ Improves braking precision and stopping consistency
✔ Superior durability using corrosion-resistant materials

Built for Performance

Our brake line kits feature:

High-quality stainless-steel fittings: Corrosion-resistant and long-lasting
PTFE-lined inner hoses: Designed for extreme pressure and heat
Lifetime guarantee: Long-term reliability and confidence

Fitment

2003–2005 Mercedes-Benz E320 (W211) – 3.2L V6

2006–2009 Mercedes-Benz E350 (W211) – 3.5L V6

2003–2006 Mercedes-Benz E500 (W211) – 5.0L V8

2007–2009 Mercedes-Benz E550 (W211) – 5.5L V8

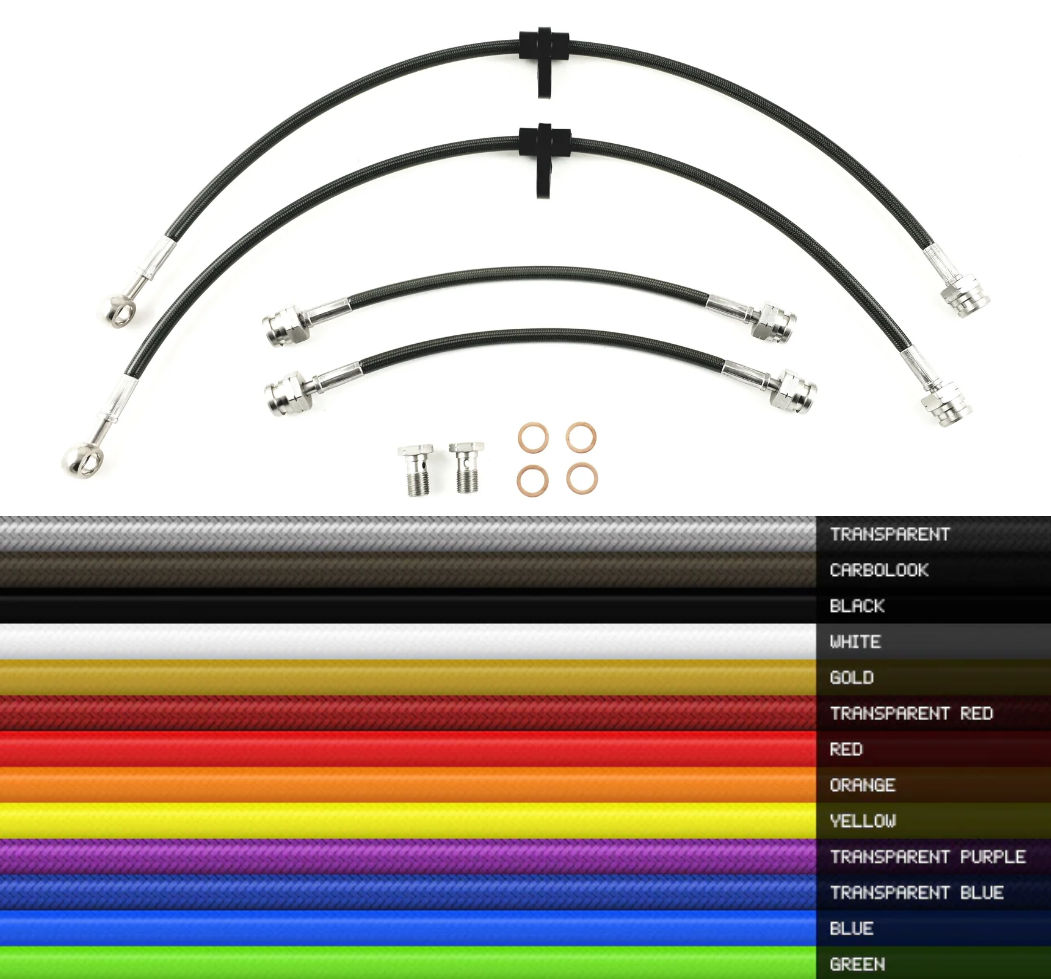

Choose the Color That Matches Your Style

Available in multiple colors ranging from subtle OEM black to bold performance shades. Select your preferred color at checkout.

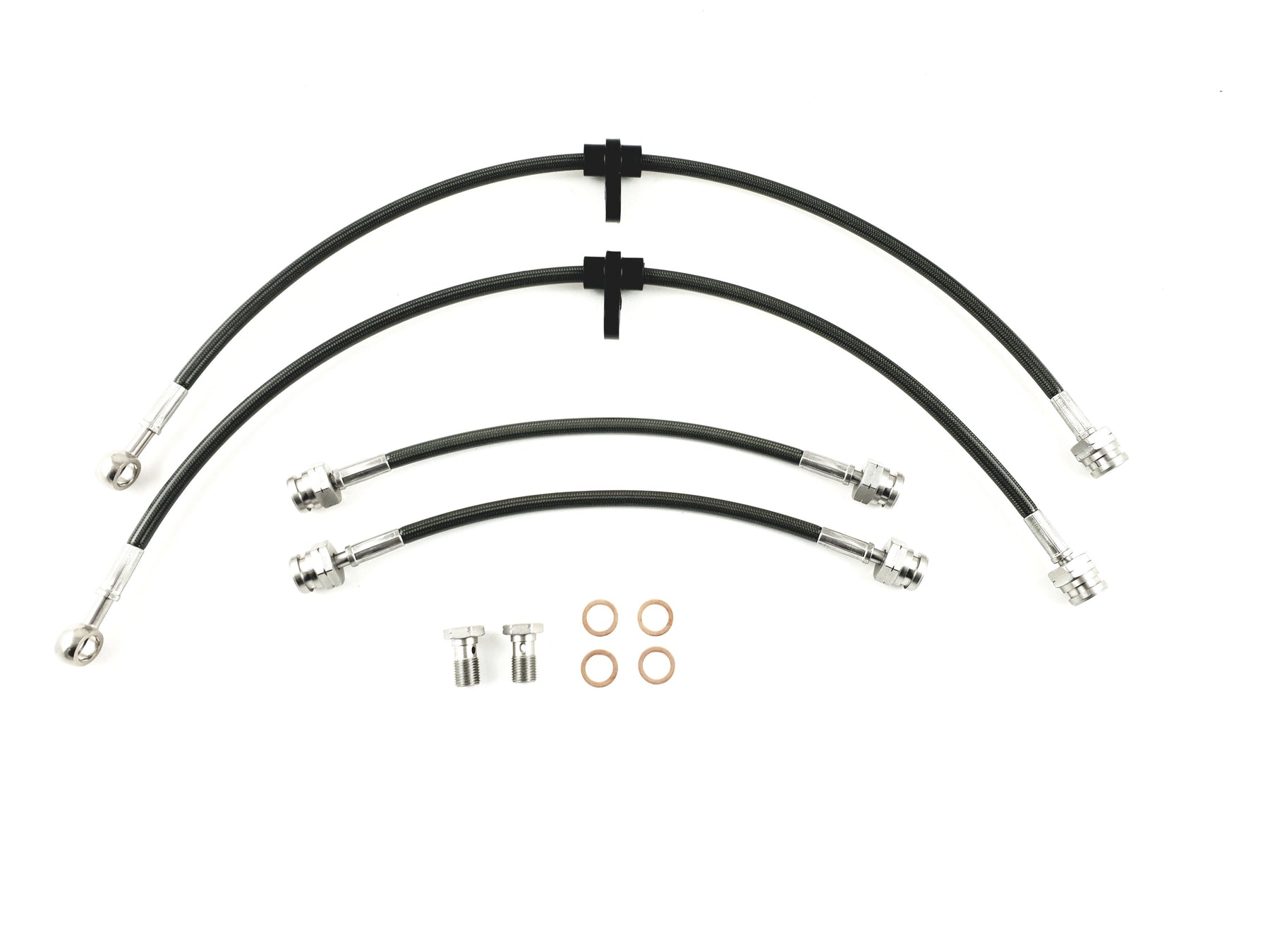

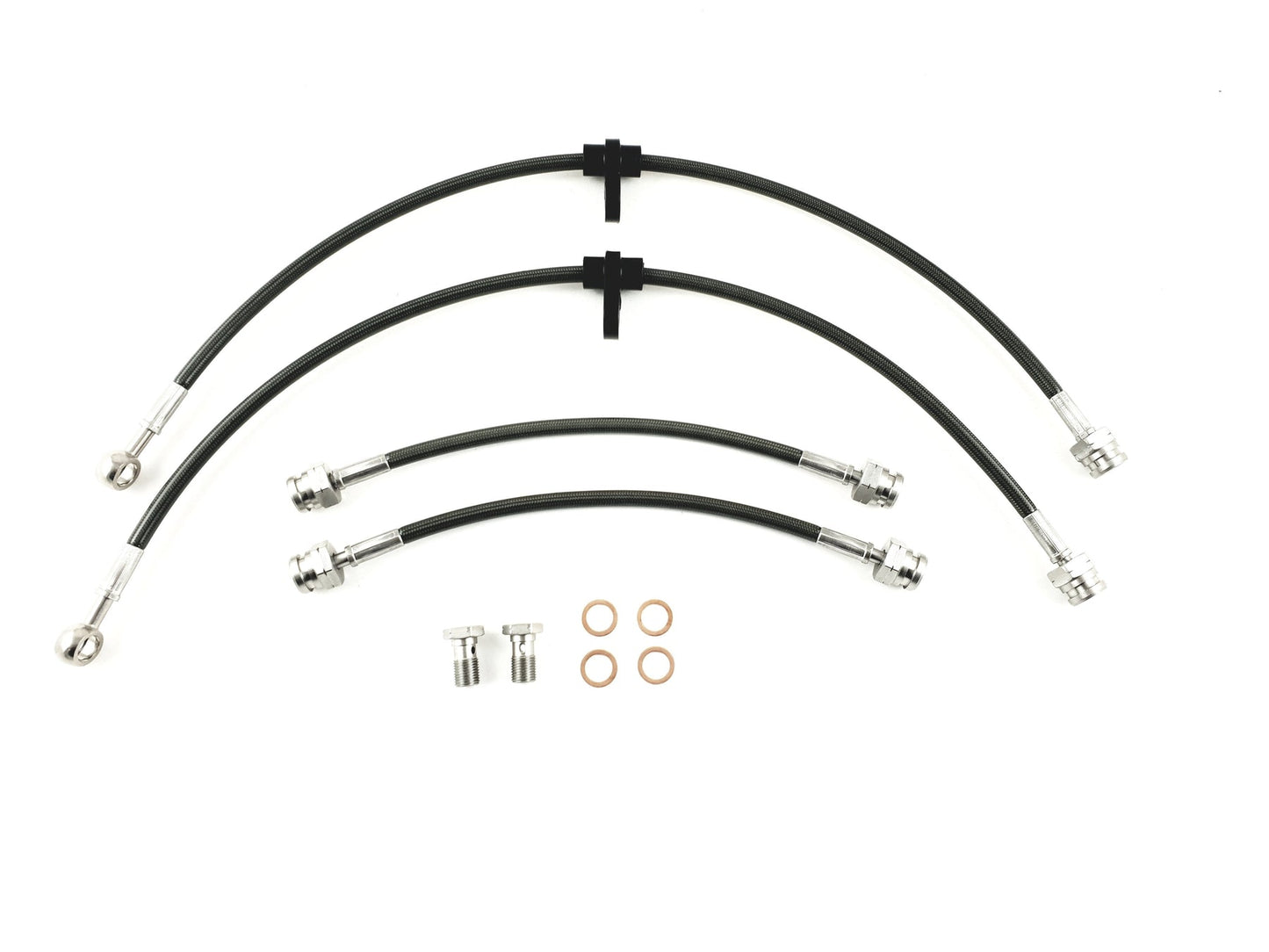

Kit Includes:

✔ 4 stainless steel braided brake lines
✔ Stainless steel banjo bolts (if required)
✔ Copper crush washers (if required)

Specifications:

Specification	Details
Inner Material	PTFE
Outer Material	Stainless steel braid with PVC cover
Fittings	Stainless steel (303/304)
Temperature Range	-70°C to 260°C (-94°F to 500°F)
Inside Diameter	3.5mm
Outside Diameter	7.5mm
Working Pressure	290 Bar (4206 PSI)
Burst Pressure	870 Bar (12618 PSI)
Minimum Bend Radius	38mm
