2001-2007 Mercedes C230 Kompressor / C240 / C280 / C320 W203 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit
2001-2007 Mercedes C230 Kompressor / C240 / C280 / C320 W203 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit
Couldn't load pickup availability
Steel Braided Brake Lines: Performance You Can Trust
Upgrade your braking performance. Whether you're daily driving or pushing hard on back roads or track days, consistent pedal feel is critical. OEM rubber hoses expand under heat and pressure, causing a soft or inconsistent pedal. Our stainless steel braided lines eliminate this problem and deliver sharper, more predictable braking.
Why Choose Braided Brake Lines?
- Removes "sponggy" pedal feel caused by rubber line expansion
- Improves braking precision and consistency
- Reduces stopping distance under demanding conditions
- Superior materials ensure long-term durability
Built for Performance
Each kit includes:
- Stainless steel fittings: Corrosion-resistant and built to last
- PTFE-lined inner hoses: Withstand extreme temperatures and high pressures
- Lifetime warranty: Confidence in long-term reliability
Vehicle Compatibility
This stainless steel braided brake line kit fits the following non-AMG Mercedes-Benz W203 models:
| Model | Chassis | Engine | Years |
|---|---|---|---|
| C230 Kompressor | W203 | 1.8L Supercharged I4 (M271) | 2003–2007 |
| C230 (non-Kompressor) | W203 | 2.5L V6 (M272) | 2006–2007 |
| C240 | W203 | 2.6L V6 (M112) | 2001–2005 |
| C280 | W203 | 3.0L V6 (M272) | 2006–2007 |
| C320 | W203 | 3.2L V6 (M112) | 2001–2005 |
⚠️ Does not fit AMG models (C32 AMG or C55 AMG).

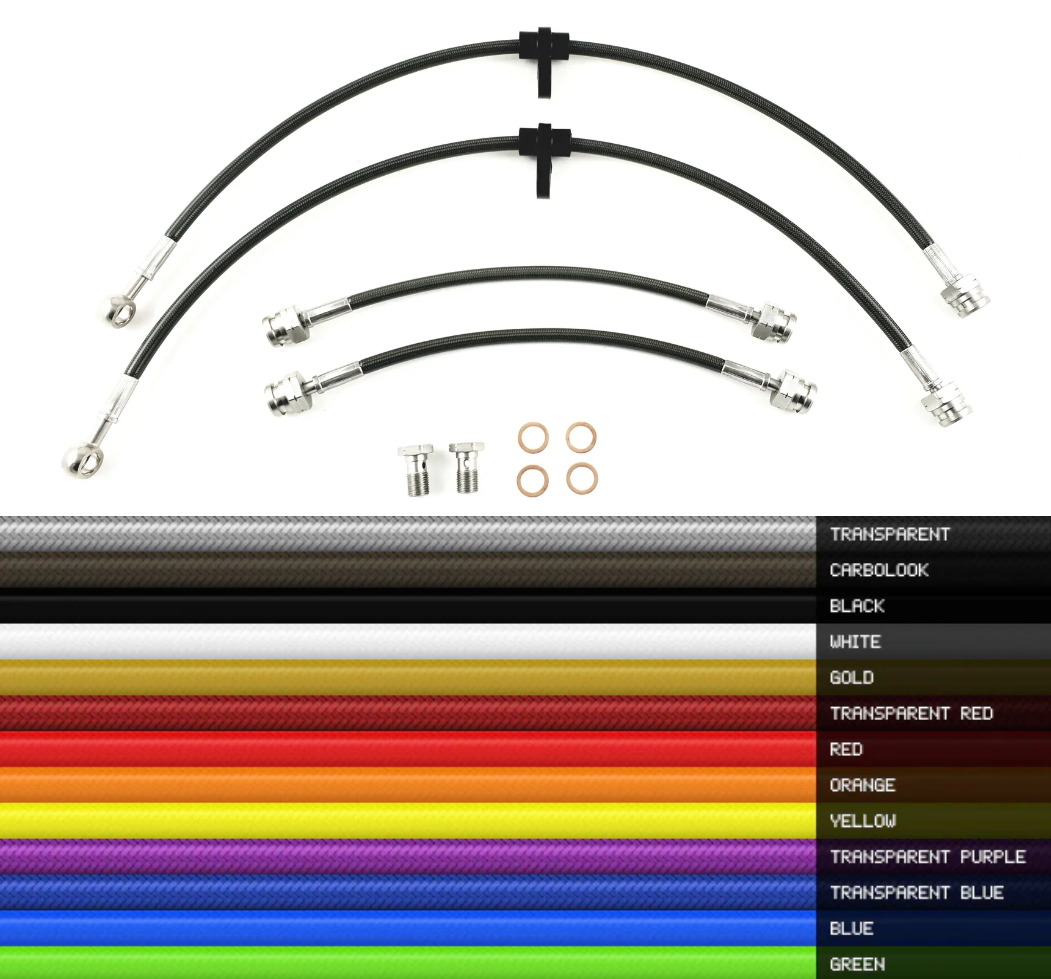

Choose the Color That Matches Your Style
Available in multiple finishes—from OEM black to bright performance colors. Select your preferred color during checkout.

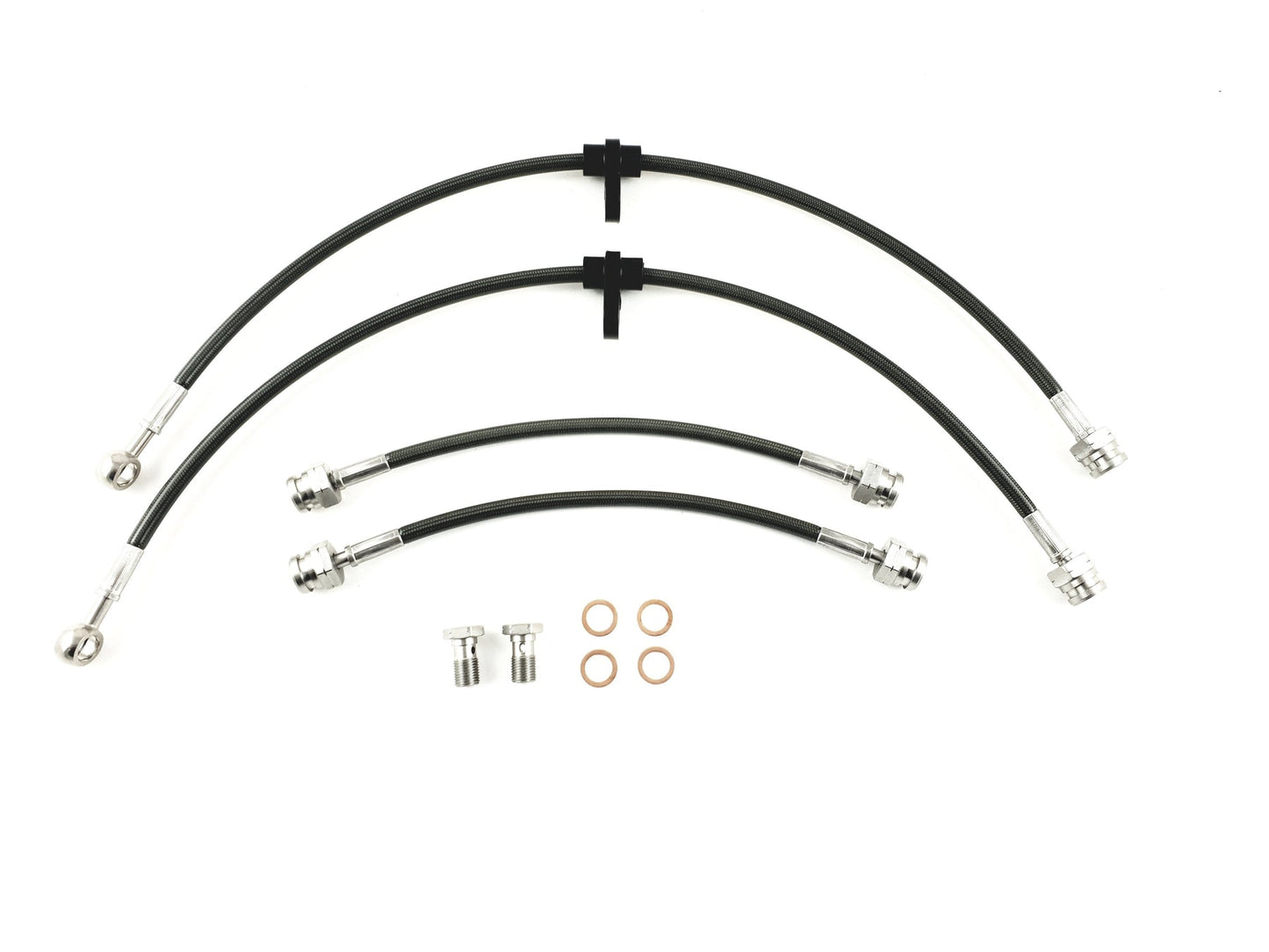

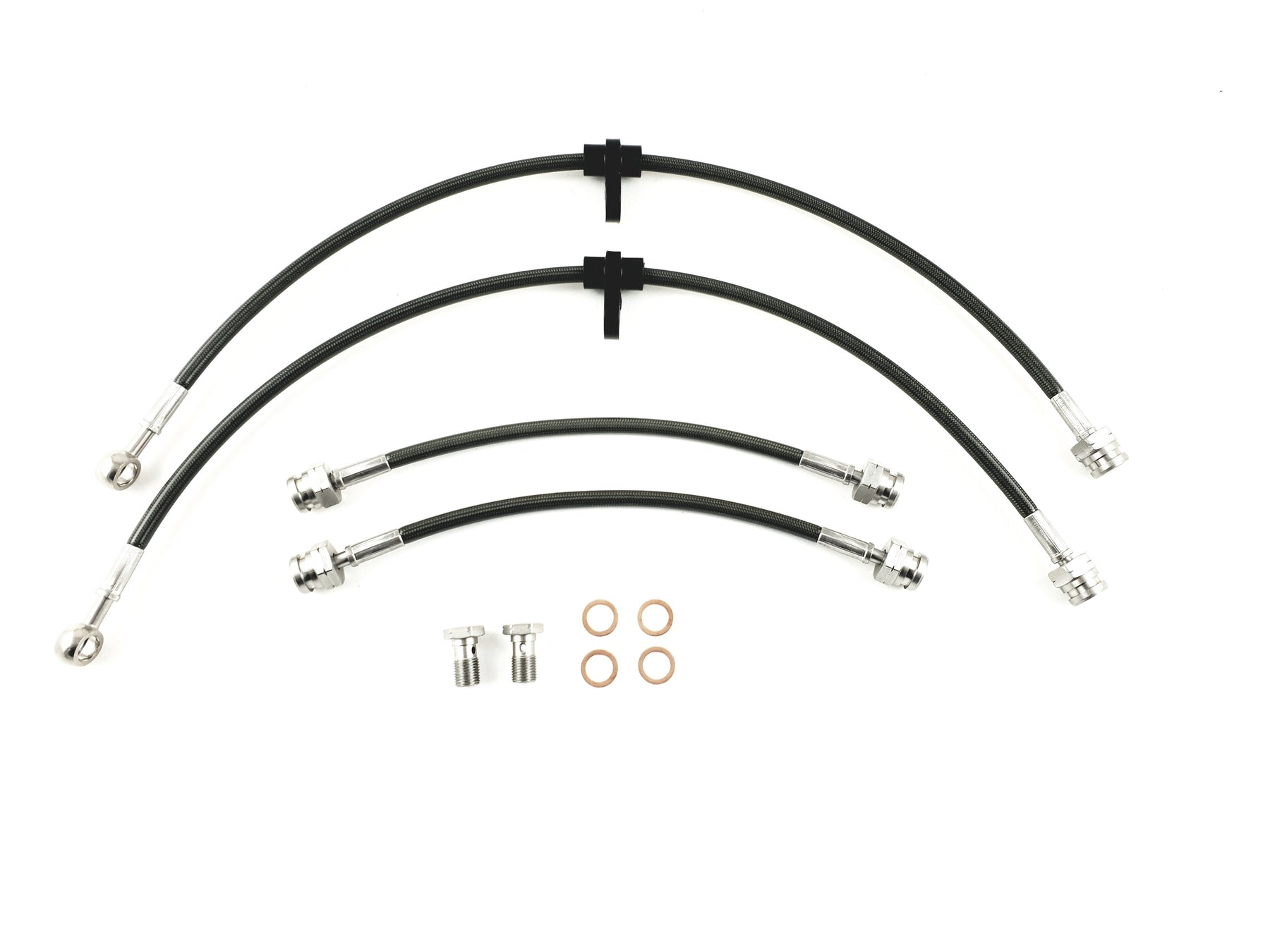

Kit Includes
- ✔ 4 stainless steel braided brake lines
- ✔ Stainless steel banjo bolts (if required)
- ✔ Copper crush washers (if required)
Installation Notes
- Direct bolt-on replacement for OEM rubber hoses
- No cutting or modification required

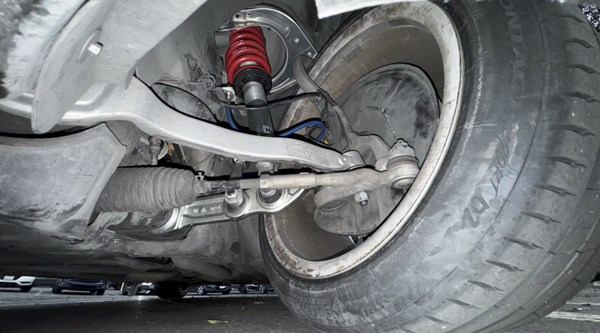

- Uses factory mounting points
- Typical installation time: 1–2 hours
- Professional installation recommended
Brake Fluid Compatibility
Compatible with all DOT 4 and DOT 5.1 brake fluids. DOT 4 LV recommended for best cold and hot performance.
Specifications
| Specification | Details |
|---|---|
| Line Inner Material | PTFE |
| Outer Material | Stainless steel braid with PVC cover |
| Fittings | Stainless steel 303/304 |
| Temperature Range | -70°C to 260°C (-94°F to 500°F) |
| Inside Diameter | 3.5 mm |
| Outside Diameter | 7.5 mm |
| Max Working Pressure | 290 Bar (4206 PSI) |
| Burst Pressure | 870 Bar (12618 PSI) |
| Minimum Bend Radius | 38 mm |
Don't settle for inferior products. While many competitors use zinc-plated fittings prone to corrosion, our stainless-steel fittings ensure long-term performance and safety.
Frequently Asked Questions
Do these improve pedal feel?
Yes — they significantly reduce expansion under pressure, resulting in a firmer, more consistent pedal.
Are these DOT compliant?
Yes — they meet or exceed typical DOT performance standards.
Do they fit AMG models?
No — this kit fits W203 non-AMG models only (C230 Kompressor, C230, C240, C280, C320). AMG models such as the C32 AMG and C55 AMG use different line lengths and fittings.
What brake fluid should I use?
DOT 4 or DOT 5.1 fluid is recommended. DOT 4 LV provides the best cold/hot performance.
