2003-2009 Mercedes CLK320 / CLK350 / CLK500 / CLK550 W209 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit
2003-2009 Mercedes CLK320 / CLK350 / CLK500 / CLK550 W209 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit
Couldn't load pickup availability
Stainless Steel Braided Brake Lines for Mercedes-Benz CLK320 / CLK350 / CLK550 (W209)
Upgrade your Mercedes-Benz CLK braking system. OEM rubber hoses expand under heat and repeated pressure, causing a soft or inconsistent pedal feel. Stainless steel braided brake lines maintain stable hydraulic pressure, resulting in sharper pedal response, shorter stopping distances, and improved braking consistency.
Performance Benefits
- ✔ Eliminates soft or “spongy” pedal feel under aggressive braking
- ✔ Improves braking precision and stopping consistency
- ✔ Corrosion-resistant stainless steel fittings for long-term durability
- ✔ Ideal for spirited driving, canyon runs, and track use
Engineered for Reliability
Every line is built to outperform OEM rubber hoses and meet or exceed DOT performance standards.
- Stainless steel fittings: Designed to resist corrosion and wear
- PTFE inner core: Maintains consistent brake pressure, even under high heat
- Lifetime guarantee: Confidence in long-term safety and performance
Why Choose Our Brake Lines?
Lifetime warranty • DOT-compliant materials • Precision-engineered fittings • Tested for performance and durability
Vehicle Compatibility (W209 CLK-Class)
Direct bolt-on fitment for the following Mercedes-Benz models:
✔ 2003–2005 CLK320 (W209) – 3.2L V6 M112
✔ 2006–2009 CLK350 (W209) – 3.5L V6 M272
✔ 2007–2009 CLK550 (W209) – 5.5L V8 M273

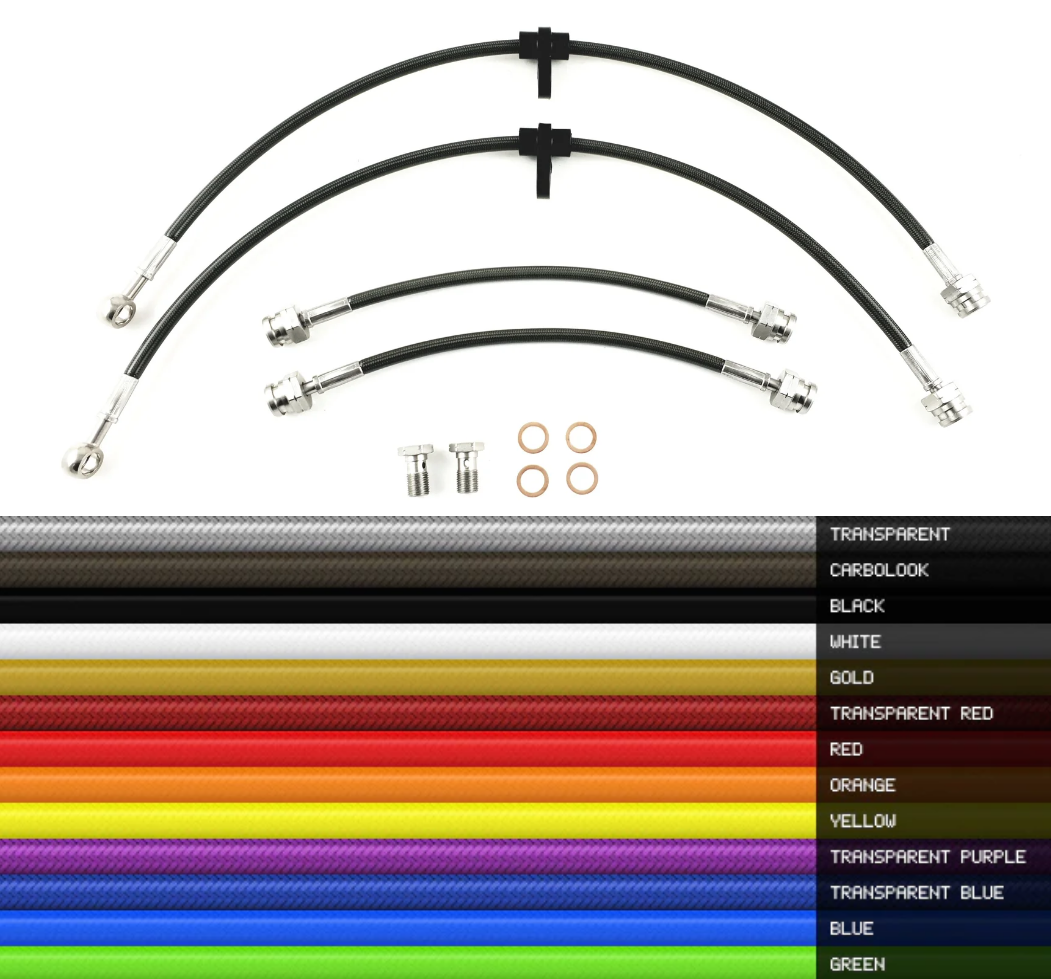

Choose the Color That Matches Your Style
Available in multiple finishes—from OEM black to bold performance colors. Select your preferred style at checkout.

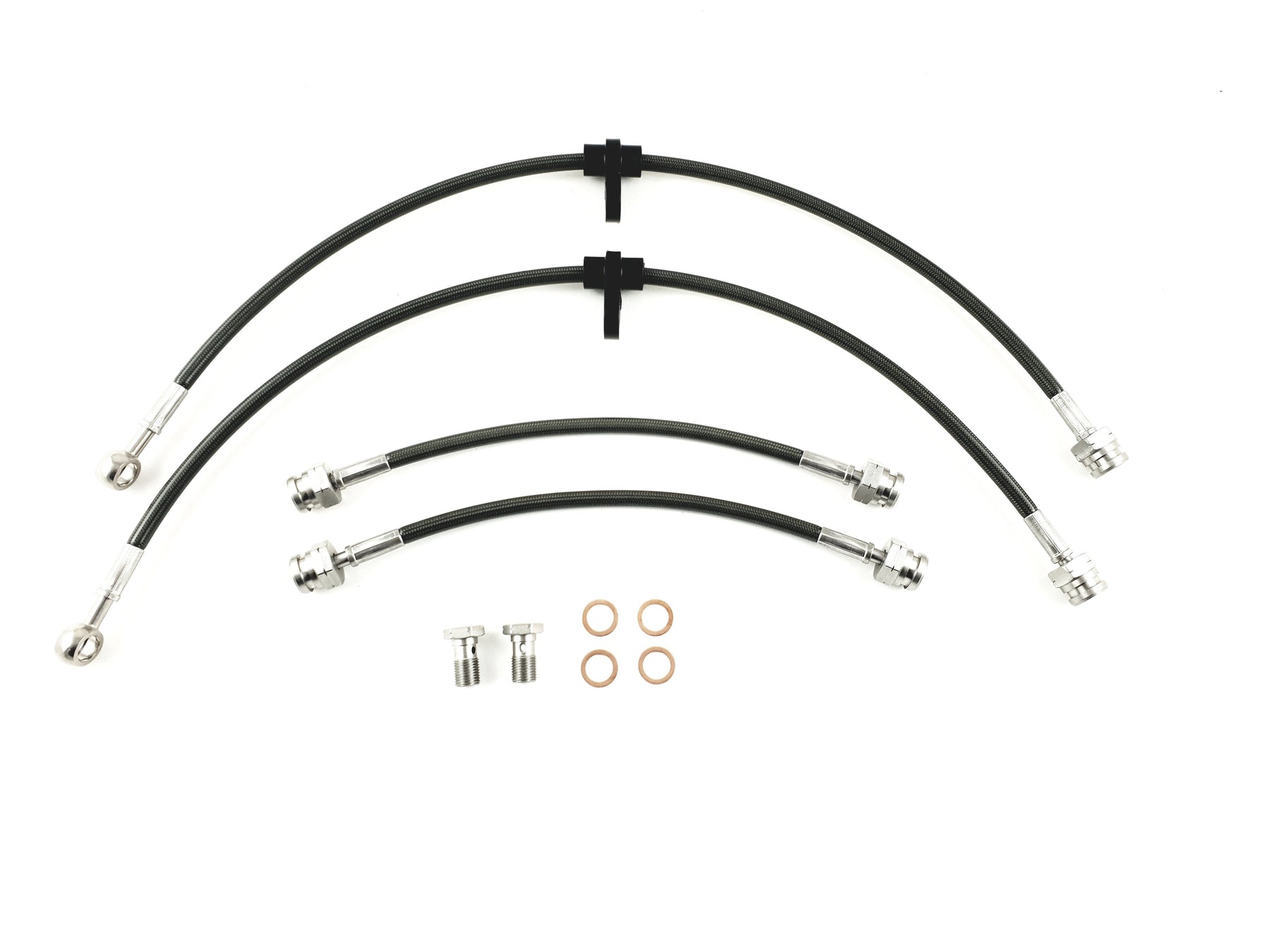

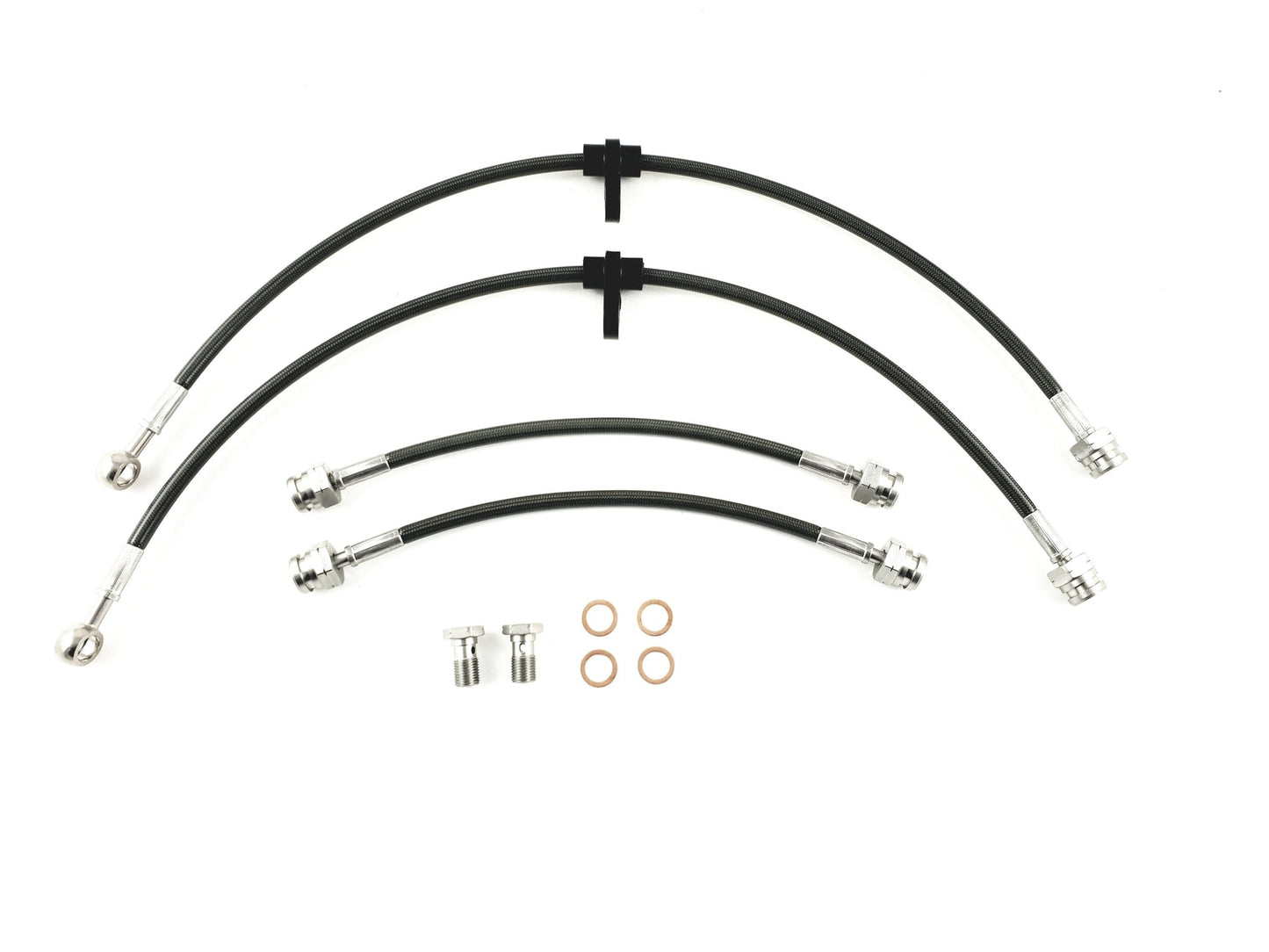

Kit Includes
- ✔ 4 stainless steel braided brake lines (front + rear)
- ✔ Stainless steel banjo bolts (if required)
- ✔ Copper crush washers (if required)
Technical Specifications
| Specification | Details |
|---|---|
| Inner Material | PTFE (Teflon) |
| Outer Material | Stainless steel braid with PVC coating |
| Fittings | Stainless steel 303/304 |
| Operating Temperature | -70°C to 260°C (-94°F to 500°F) |
| Inside Diameter | 3.5 mm |
| Outside Diameter | 7.5 mm |
| Max Working Pressure | 290 Bar (4206 PSI) |
| Burst Pressure | 870 Bar (12618 PSI) |
| Minimum Bend Radius | 38 mm |
Frequently Asked Questions
Are stainless steel braided brake lines worth it?
Yes. They reduce line expansion, resulting in sharper pedal feel, consistent braking, and improved high-heat performance.
Do these brake lines fit all Mercedes-Benz W209 CLK models?
Yes, they are direct bolt-on replacements for all CLK320, CLK350, and CLK550 models.
Do I need to modify anything to install these?
No cutting or special fabrication is required—these lines are designed to match factory lengths and connection points.
Do these brake lines require special brake fluid?
No. These lines work with any DOT 4 or DOT 5.1 fluid recommended by Mercedes-Benz.
