2015–2022 Mercedes C300 / C350e / C400 W205 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit
2015–2022 Mercedes C300 / C350e / C400 W205 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit
Couldn't load pickup availability
Upgrade your braking system with this set of stainless steel braided brake lines for the Mercedes-Benz C300, C350e and C400 — the W205 sedan from 2015 to 2021, plus the C205 coupe and A205 cabriolet for 2021 and 2022. This complete four-line kit uses a PTFE core inside a 304 stainless steel braid for a firmer pedal and more consistent braking under repeated hard use. As temperatures rise, factory rubber hoses expand and the pedal goes spongy. Braided lines hold their shape, so pedal feel stays the same from the first stop to the last.

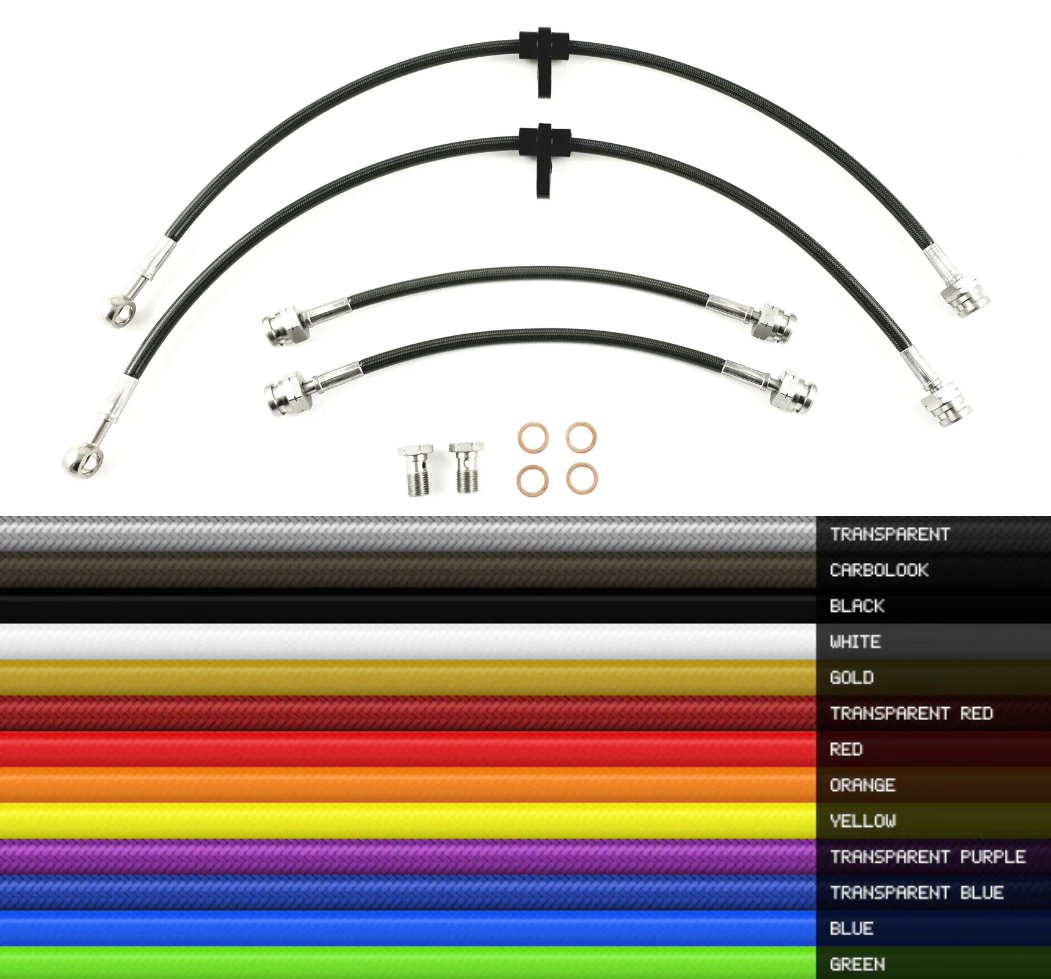

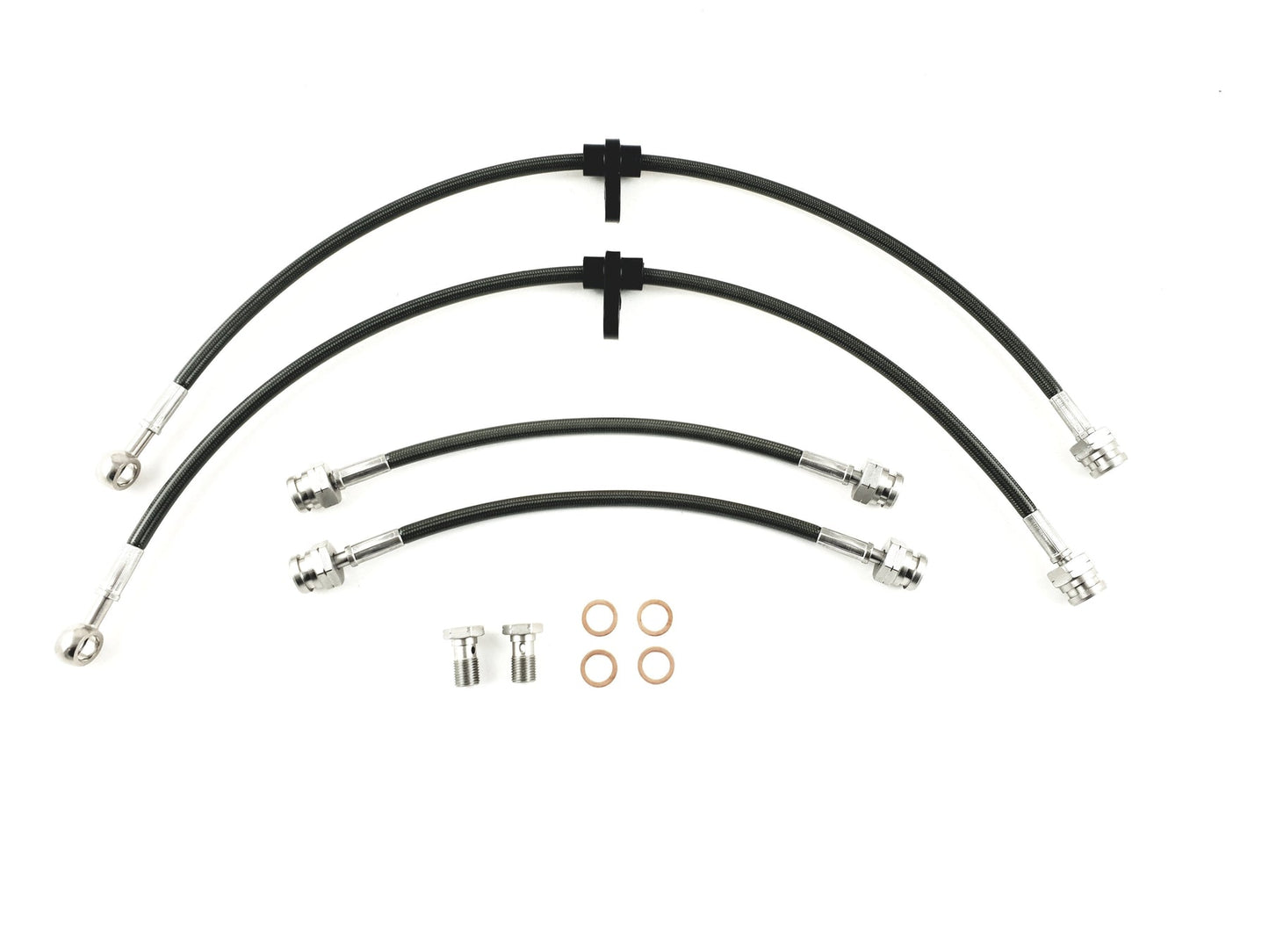

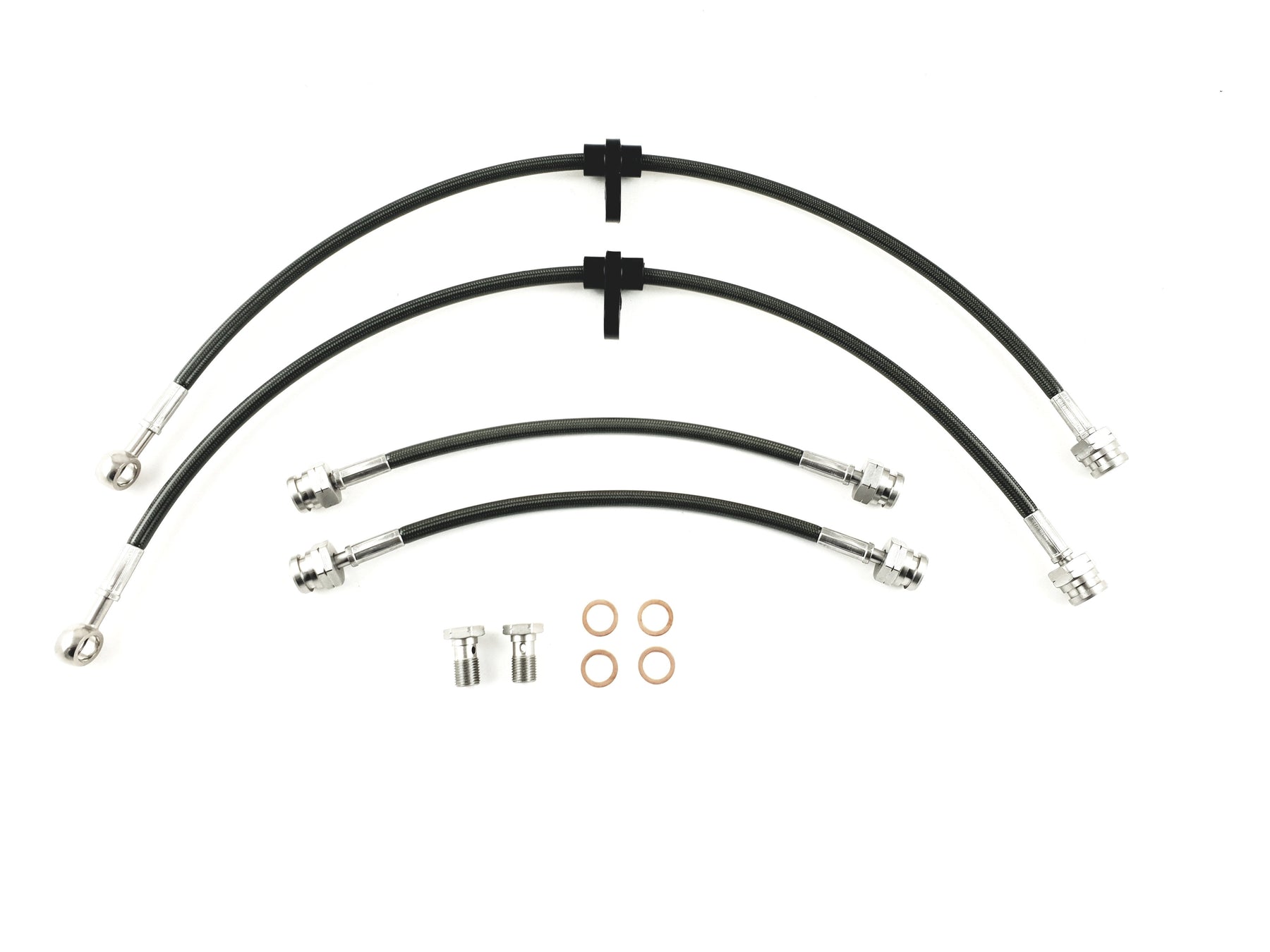

What's in the Kit
- 4 braided brake lines — 2 front, 2 rear
- Stainless steel banjo bolts
- Copper crush washers
Specifications
| Inner hose | PTFE |
| Outer braid | 304 stainless steel with PVC cover |
| Fittings | Stainless steel |
| Working pressure | 4,206 PSI |
| Burst pressure | 12,618 PSI |
| Operating temperature | -94°F to +500°F |
| Inside diameter | 3.5 mm |
| Outside diameter | 7.5 mm |
| Minimum bend radius | 38 mm |
Vehicle Compatibility
| Model | Body Style | Chassis | Engine | Years |
|---|---|---|---|---|
| C300 4MATIC | Sedan | W205 | 2.0L Turbo I4 (M274 / M264) | 2015–2021 |
| C300 | Sedan | W205 | 2.0L Turbo I4 (M264) | 2019–2021 |
| C350e | Sedan | W205 | 2.0L Turbo I4 Plug-in Hybrid (M274) | 2018 |
| C400 4MATIC | Sedan | W205 | 3.0L BiTurbo V6 (M276) | 2015 |
| C300 / C300 4MATIC | Coupe | C205 | 2.0L Turbo I4 (M264) | 2021–2022 |
| C300 / C300 4MATIC | Cabriolet | A205 | 2.0L Turbo I4 (M264) | 2021–2022 |
Direct bolt-on replacement for the factory rubber hoses. Uses the original mounting points and routing — nothing cut, bent or modified.
Not for 2016–2018 rear-wheel-drive C300 sedans, 2016–2017 C350e, or 2017–2020 C300 coupes and cabriolets — these use a different front hose.
Frequently Asked Questions
Do braided brake lines actually make a difference?
Yes, and the difference is pedal feel rather than stopping power on paper. Rubber hoses expand slightly every time you press the pedal, and more as they heat up — which shows up as a pedal that sinks further the harder you use the brakes. A PTFE liner inside a stainless braid barely moves, so the pedal stays where you expect it. Most noticeable on repeated hard stops, downhill runs, or track sessions.
Do I need to bleed the brakes afterward?
Yes. Any time a brake line comes off, air enters the system and the brakes must be bled before the car is driven. Most people flush in fresh fluid at the same time, since the system is already open.
Can I install these myself?
It's a straightforward job for anyone comfortable working on brakes — roughly 1–2 hours with the car safely supported and a way to bleed the system afterward. If you aren't confident bleeding brakes, have a shop do it. This is the one system on the car where a mistake isn't recoverable.
Should I replace pads and fluid at the same time?
Worth considering, since the system is already open and has to be bled regardless. Lines, pads and fluid together means one job instead of three.
