Mercedes-Benz M278 Intake Filter Spacer Kit – 4.7L V8 BiTurbo E550, CLS550, S550, SL550

Mercedes-Benz M278 Intake Filter Spacer Kit – 4.7L V8 BiTurbo E550, CLS550, S550, SL550

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out
Shipping calculated at checkout.

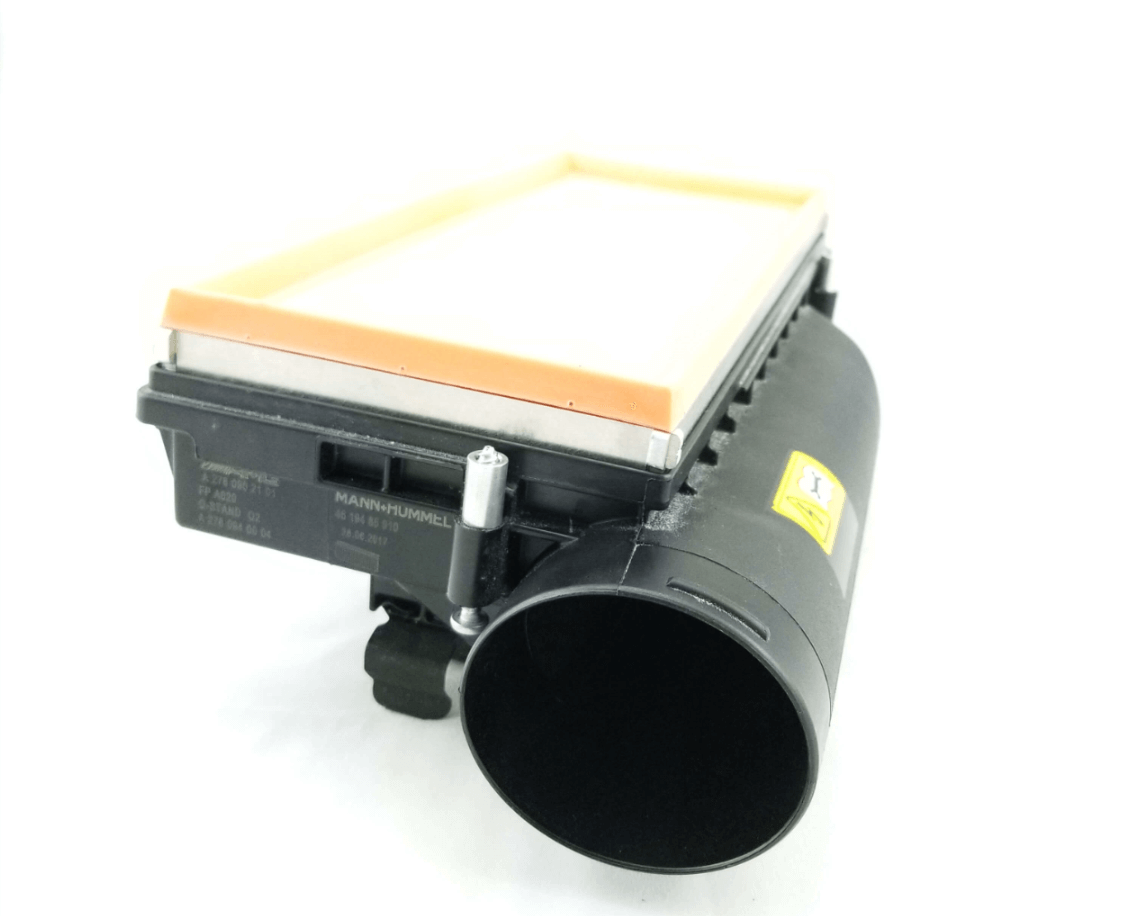

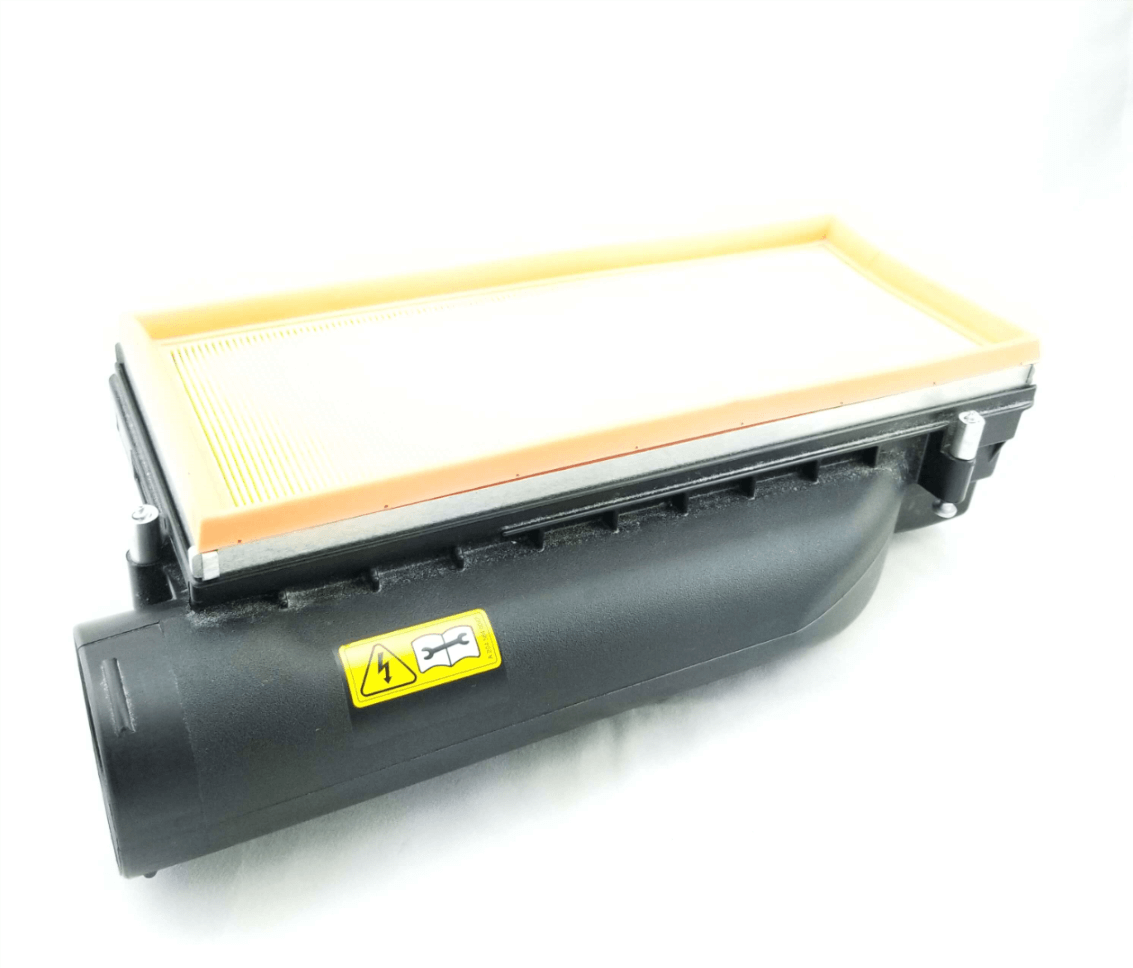

Unlock the airflow your 4.7L BiTurbo should have had from the factory. This CNC-machined Intake Filter Spacer Kit for the M278 (4.7L V8 BiTurbo) eliminates a known choke point inside the OEM airbox, improving airflow efficiency, sharpening throttle response, and giving the M278 a noticeably freer, stronger midrange — all while keeping a stock-clean engine bay.

🔥 Key Features for M278 Twin-Turbo V8

  • Reduces the factory choke point: Lifts the filter into the optimal flow path, increasing effective inlet area and smoothing turbulence.
  • Works with OEM & high-flow filters: Fully compatible with Mercedes paper filters and all performance filter upgrades.
  • OEM engine cover compatible: Maintains a completely stock appearance — ideal for sleeper builds and inspection-safe mods.
  • CNC-machined aluminum: Heat-stable, corrosion-resistant, and precision-fit for every M278 airbox.
  • Optional Cerakote finish: Available in stealth black or custom colors with engraving.

📈 Real-World Benefits on M278 Models

  • Quicker turbo spool: Lower restriction means the turbos ramp up sooner and with less effort.
  • Smoother, stronger midrange: Exactly where the M278 spends most of its time — daily driving, freeway pulls, and overtakes.
  • More headroom when tuned: Helps prevent airflow bottlenecks that show up on tuned 4.7L BiTurbo setups.
  • Perfect stealth mod: Hidden inside the airbox — zero visible changes under the hood.

No tune required — fully compatible with stock ECU mapping

🔬 Why the Spacer Works

The factory M278 airbox has a restriction where the filter seals against the upper lid. At higher airflow levels, this lip becomes a bottleneck, increasing turbulence and reducing effective inlet area. Raising the filter slightly fixes this — improving compressor efficiency, airflow stability, and response under load.

✔️ Compatibility – M278 4.7L BiTurbo V8

Fits all Mercedes-Benz models equipped with the M278 4.7L BiTurbo V8 engine:

Model Trim Years
E-Class (W212) E 550 2012–2016
CLS-Class (W218) CLS 550 2012–2018
S-Class (W221/W222) S 550 2011–2017
SL-Class (R231) SL 550 2013–2020
CL-Class (C216) CL 550 2011–2014
GL-Class (X166) GL 450 2013–2014
GL-Class (X166) GL 550 2013–2016
GLS-Class (X166) GLS 550 2017–2019
ML-Class (W166) ML 550 2012–2014

Note: Only fits M278 4.7L V8 BiTurbo.

📦 What’s Included

  • (2) CNC-machined aluminum intake spacers (left + right), 4 interlocking pieces each
  • Extra screws and rubber washers

🧰 Installation

Around 20–30 minutes. Run through these steps once for each air filter housing.

Tool Required Torx T-25 driver
Spacer Pieces 4 aluminum pieces per air filter housing
Hardware Extra screws and rubber washers included
  1. Lift the front engine cover off. Tug the sides to free the side clips, then lift the front to release the front clips. It pulls straight up off its rubber mounts.
  2. Release the duct and the sensor. Each air filter housing has a worm-gear clamp where the intake duct meets it, and a sensor connector. Loosen the clamp, work the duct off, then unclip the connector.
  3. Lift the housing out and turn it upside down. That exposes the factory Torx screws. Unscrew them with the T-25 driver.
  4. Slot the four aluminum pieces together. They interlock at the corners. Press each corner together until the frame sits square.
  5. Fit a rubber washer at every screw point. One per screw hole, linking both halves of the housing.
  6. Run the screws through. Each screw goes through the original housing screw hole, down through its washer, and out the other side.
  7. Tighten evenly. Work across the housing rather than round it, like wheel bolts. Snug is enough.
  8. Refit the housing. Drop it back into place, push the duct on and tighten its clamp, then click the sensor connector home. Give the connector a gentle tug to confirm it's latched.
  9. Refit the engine cover. Line it up and push down directly above each clip until it seats. Don't press in the middle and hope.

See this kit fitted — customer build on Instagram →

🏁 Why Trust BenzUnited Performance Parts?

We’ve spent over 12 years testing and tuning various Mercedes-Benz platforms. Our development process is based on real driving, data logging, and long-term ownership.

  • Platform expertise: We build upgrades specifically for Mercedes V8 turbo engines — not universal parts.
  • No hype, no guesswork: If a mod doesn’t show improvement in throttle response, airflow stability, or real acceleration — we don’t sell it.
  • OEM+ philosophy: Stealthy, reversible, reliability-focused upgrades that work in the real world.
Our M278 upgrades are designed, tested, and refined by people who live and breathe these cars — ensuring performance you can feel, and reliability you can trust.
