M177 Intake Spacer Kit – C63 / GLC63 AMG OEM-Plus Airflow Upgrade
M177 Intake Spacer Kit – C63 / GLC63 AMG OEM-Plus Airflow Upgrade
Couldn't load pickup availability

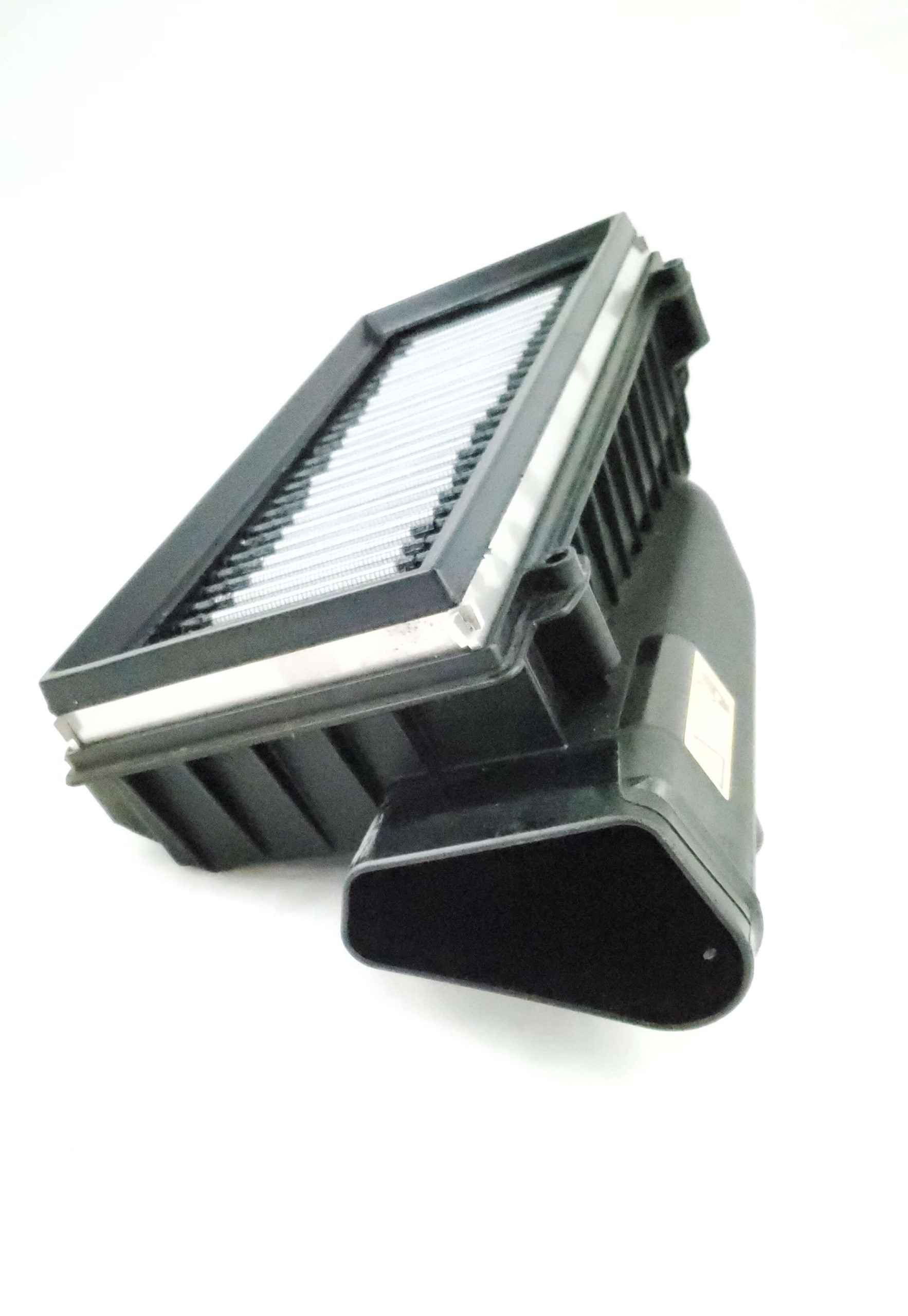

This M177 Intake Spacer Kit raises the factory air filters inside the airbox to reduce restriction and improve airflow on the 4.0L BiTurbo V8. It delivers sharper throttle response and better overall breathing efficiency while maintaining the original OEM appearance and fitment.
Key Features & Benefits
- Improved Intake Airflow — Raises factory filters to reduce restriction in the M177 airbox
- Sharper Throttle Response — Freer airflow improves mid-to-high RPM power delivery
- OEM-Plus Fit & Finish — Maintains factory alignment and clean engine bay appearance
- Universal Filter Compatibility — Works with OEM, BMC, K&N, aFe, and other drop-in filters

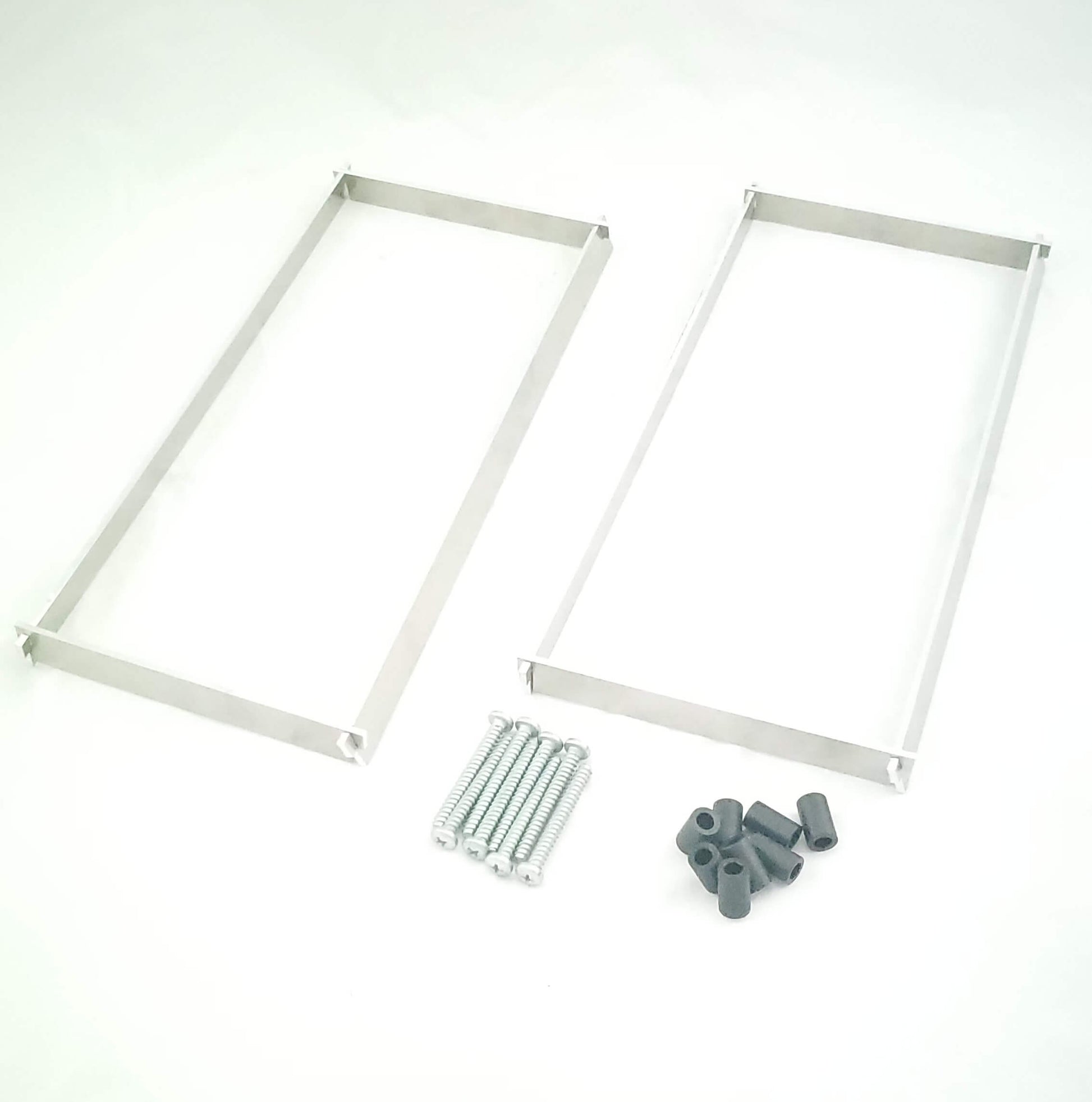

- Complete Hardware Kit — Four interlocking aluminum pieces per air filter housing, plus extra screws and rubber washers
- Quick Installation — Takes 20–30 minutes with a Torx T-25 driver — no tuning required
Compatibility
| Model | Years | Chassis |
|---|---|---|
| C63 / C63 S AMG | 2015–2021 | W205 |
| GLC63 / GLC63 S AMG | 2018–2021 | X253 |
| G550 | 2015–2017 | W463 |
Installation
Around 20–30 minutes. Run through these steps once for each air filter housing.
| Tool Required | Torx T-25 driver |
| Spacer Pieces | 4 aluminum pieces per air filter housing |
| Hardware | Extra screws and rubber washers included |
- Lift the front engine cover off. Tug the sides to free the side clips, then lift the front to release the front clips. It pulls straight up off its rubber mounts.
- Release the duct and the sensor. Each air filter housing has a worm-gear clamp where the intake duct meets it, and a sensor connector. Loosen the clamp, work the duct off, then unclip the connector.
- Lift the housing out and turn it upside down. That exposes the factory Torx screws. Unscrew them with the T-25 driver.
- Slot the four aluminum pieces together. They interlock at the corners. Press each corner together until the frame sits square.
- Fit a rubber washer at every screw point. One per screw hole, linking both halves of the housing.
- Run the screws through. Each screw goes through the original housing screw hole, down through its washer, and out the other side.
- Tighten evenly. Work across the housing rather than round it, like wheel bolts. Snug is enough.
- Refit the housing. Drop it back into place, push the duct on and tighten its clamp, then click the sensor connector home. Give the connector a gentle tug to confirm it's latched.
- Refit the engine cover. Line it up and push down directly above each clip until it seats. Don't press in the middle and hope.

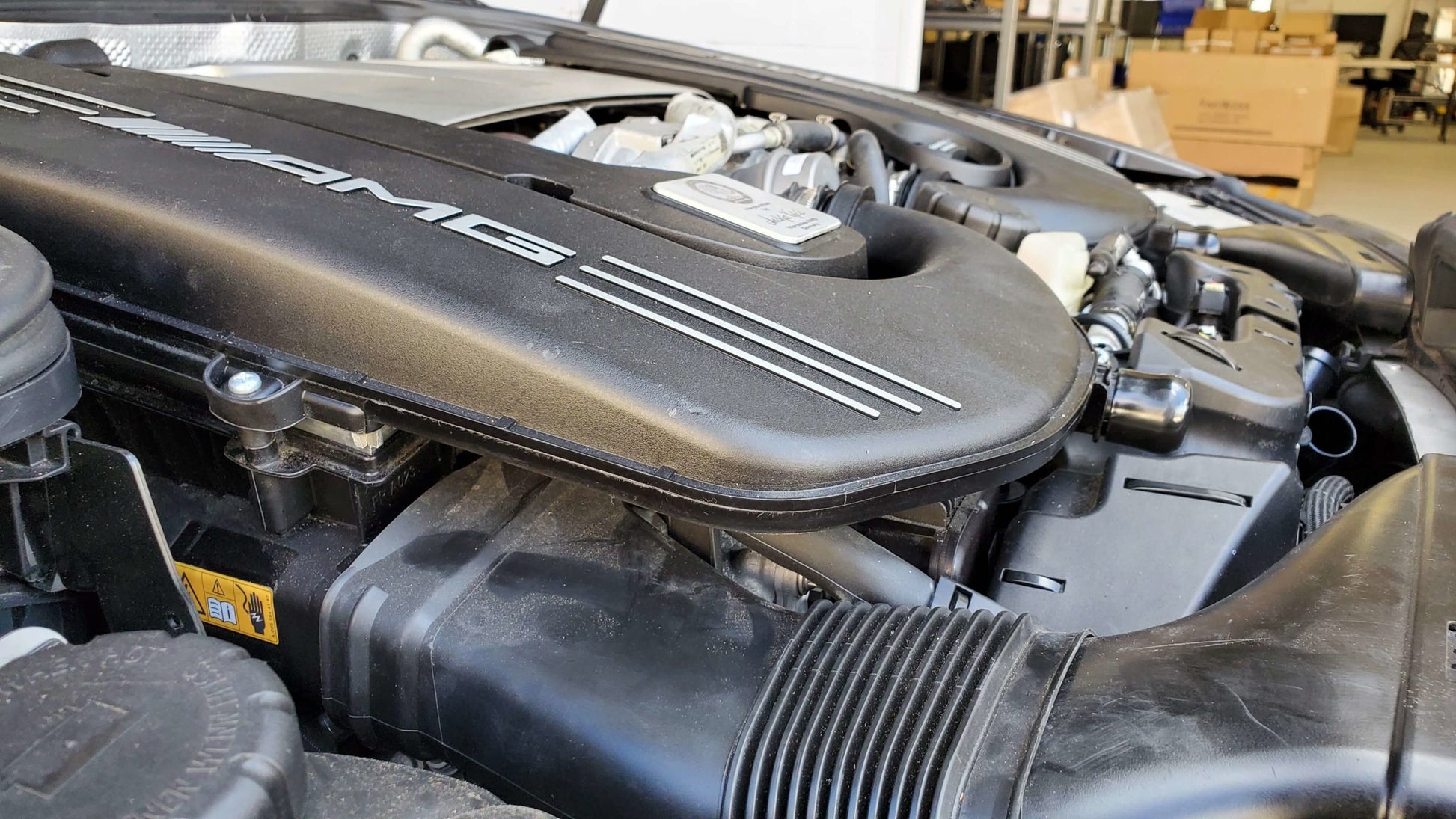

See this kit fitted — customer build on Instagram →
Frequently Asked Questions
Will this require tuning?
No tuning is required. The kit works on completely stock vehicles.
Does it change the engine bay appearance?
No — it maintains the factory OEM look and alignment.
Which filters are compatible?
Works with OEM, BMC, K&N, aFe, and most other drop-in panel filters.
How long does installation take?
20–30 minutes with a Torx T-25 driver.
