BenzUnited Parts

M278 Mercedes Intake Spacer Kit + Set of K&N Drop-in Performance Air Filters (4.7L V8 Bi-Turbo)

M278 Mercedes Intake Spacer Kit + Set of K&N Drop-in Performance Air Filters (4.7L V8 Bi-Turbo)

Regular price $285.00 USD
Regular price Sale price $285.00 USD
Sale Sold out
Shipping calculated at checkout.

The ultimate OEM+ intake upgrade — K&N high-flow filters + precision airbox spacers for maximum throttle sharpness and mid-range power.


Why This K&N + Spacer Combo Crushes It on the M278

✅ Airbox Spacers (Left + Right)
Raises the filter sealing plane for smoother, higher-volume airflow into the MAF housing.

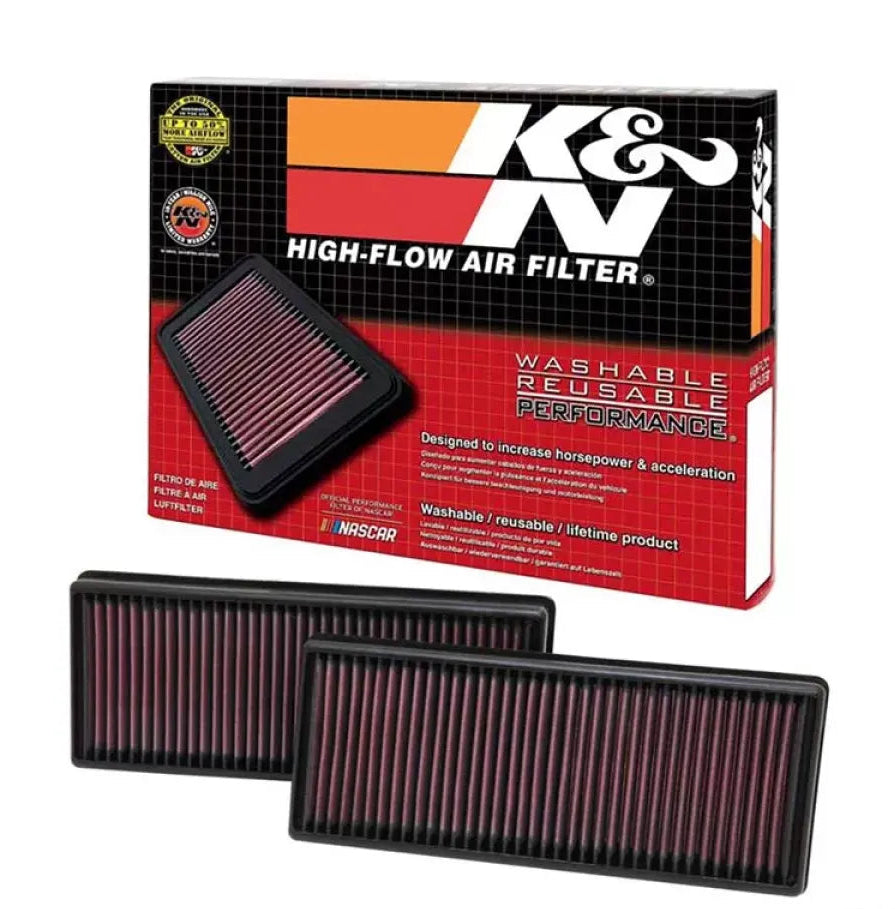

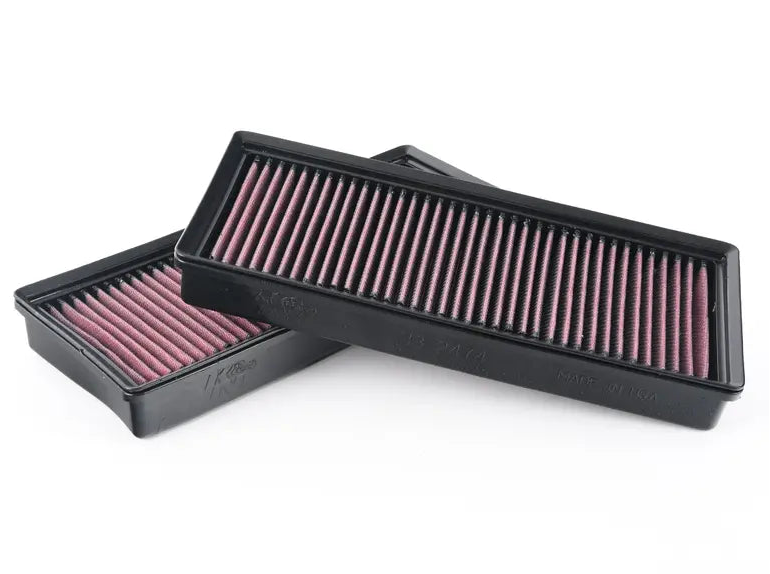

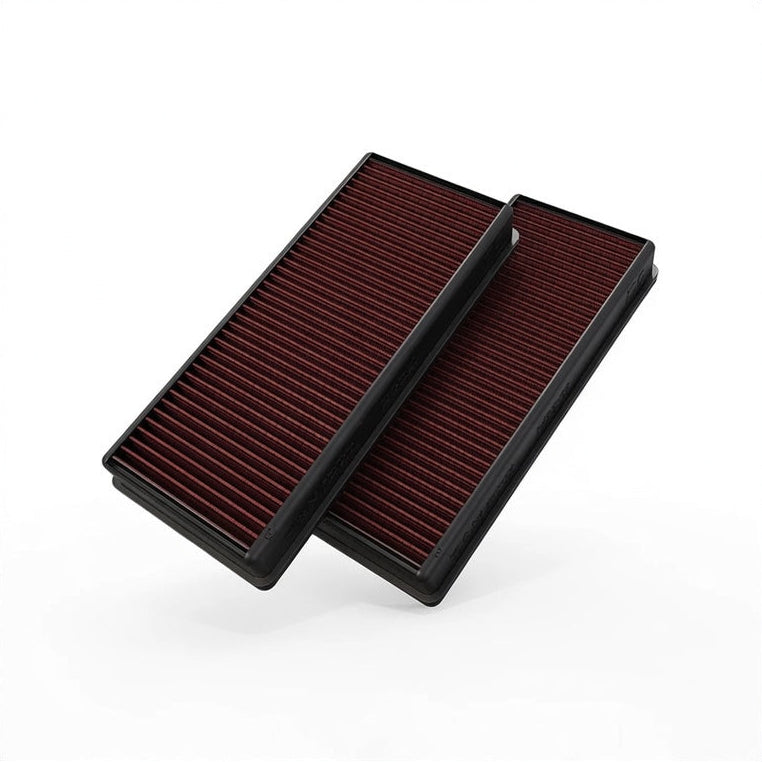

✅ K&N 33-2474 Performance Filters
Oiled cotton media, washable and reusable, no tuning needed. Backed by K&N's No-Hassle Lifetime Limited Warranty.
✅ Factory Airbox Retained
Keeps perfect cold-air routing & heat shields — zero heat-soak, zero MAF issues.

What Owners Notice

  • Crispier throttle tip-in and noticeably stronger mid-range pull
  • Better power consistency on hot days and repeated pulls
  • Zero check-engine lights • No ECU retune

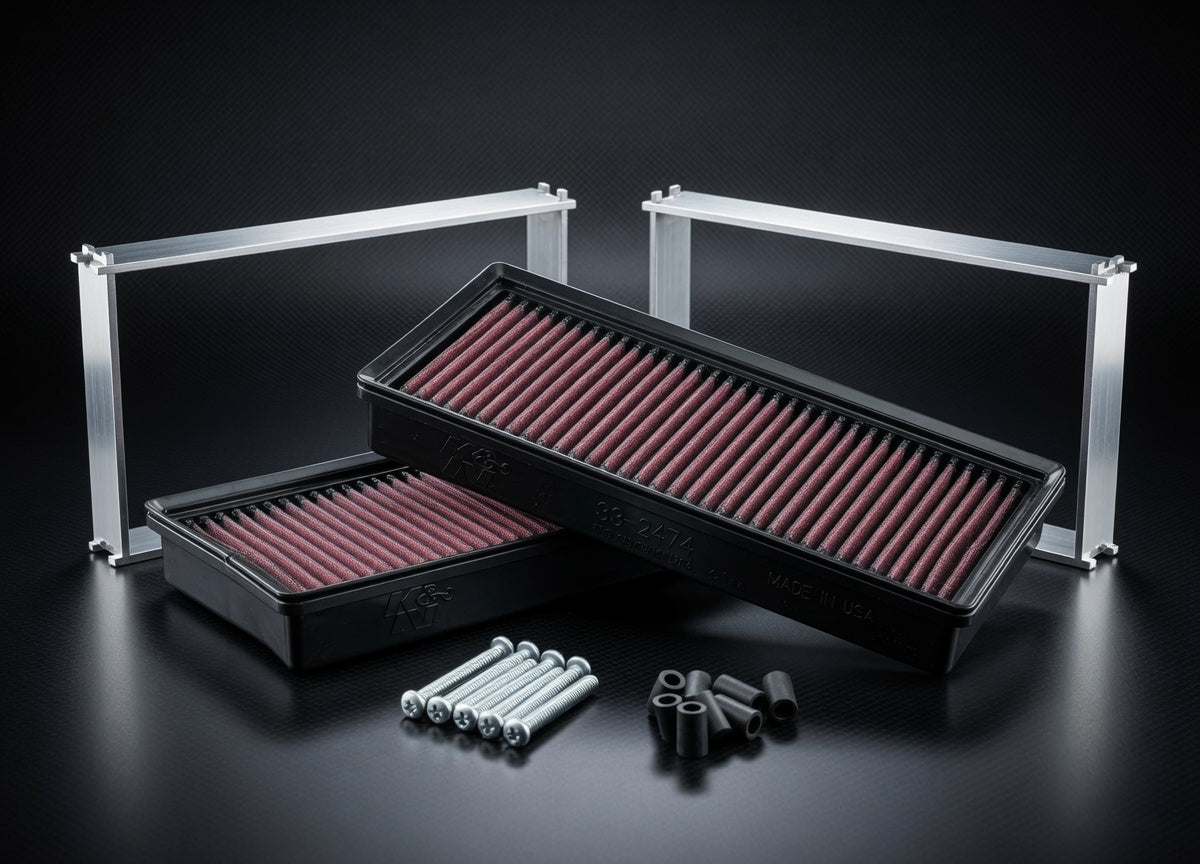

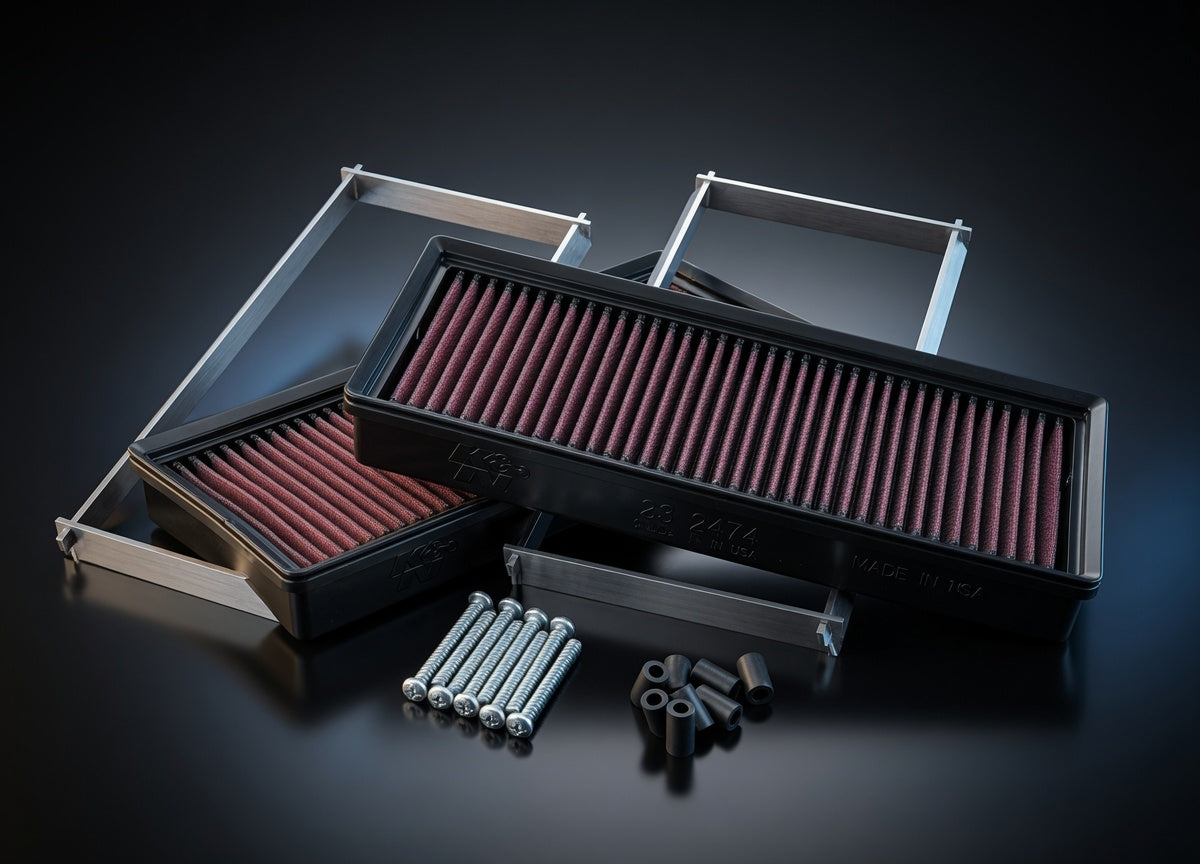

What You Get (Full Combo Kit)

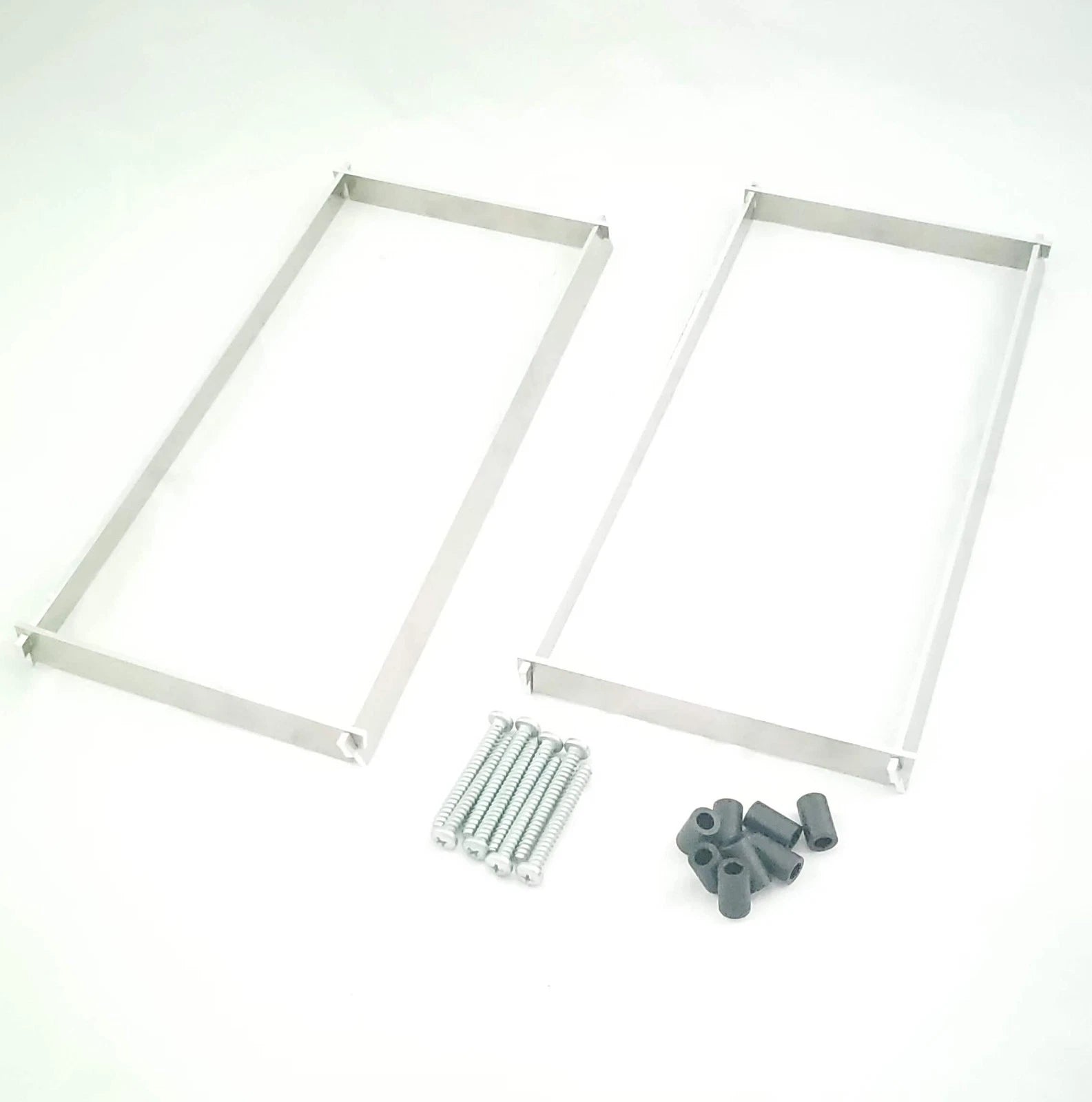

  • ✔ 2 × Precision CNC-machined airbox spacers (left + right), 4 interlocking pieces each
  • ✔ 2 × K&N 33-2474 High-Flow Performance Air Filters (pre-oiled)
  • ✔ Extra screws and rubber washers

Fits These M278 4.7L BiTurbo V8 Models

Model Chassis Years
E 550 • CLS 550 W212 / C218 2012–2016
S 550 • CL 550 W221 • W222 • C216 2011–2017
SL 550 R231 2013–2020
GL 450 X166 2013–2014
GL 550 X166 2013–2016
GLS 550 X166 2017–2019
ML 550 W166 2012–2014

Installation

Around 20–30 minutes. Run through these steps once for each air filter housing.

Tool Required Torx T-25 driver
Spacer Pieces 4 aluminum pieces per air filter housing
Hardware Extra screws and rubber washers included
  1. Lift the front engine cover off. Tug the sides to free the side clips, then lift the front to release the front clips. It pulls straight up off its rubber mounts.
  2. Release the duct and the sensor. Each air filter housing has a worm-gear clamp where the intake duct meets it, and a sensor connector. Loosen the clamp, work the duct off, then unclip the connector.
  3. Lift the housing out and turn it upside down. That exposes the factory Torx screws. Unscrew them with the T-25 driver.
  4. Slot the four aluminum pieces together. They interlock at the corners. Press each corner together until the frame sits square.
  5. Fit a rubber washer at every screw point. One per screw hole, linking both halves of the housing.
  6. Run the screws through. Each screw goes through the original housing screw hole, down through its washer, and out the other side.
  7. Tighten evenly. Work across the housing rather than round it, like wheel bolts. Snug is enough.
  8. Refit the housing. Drop it back into place, push the duct on and tighten its clamp, then click the sensor connector home. Give the connector a gentle tug to confirm it's latched.
  9. Refit the engine cover. Line it up and push down directly above each clip until it seats. Don't press in the middle and hope.

See this kit fitted — customer build on Instagram →

Frequently Asked Questions

Do I need a tune after installing this?

No. This kit runs on the stock tune with no ECU changes, no check engine lights, and no MAF issues — the factory airbox and cold-air routing are retained.

What do the spacers actually do?

They raise the filter sealing plane, which lets more air move into the MAF housing than the factory arrangement allows. You keep the OEM airbox and heat shielding, so there's no heat soak — unlike an open-element intake.

Do the filters need cleaning?

Yes — the K&N 33-2474 filters are washable oiled cotton, so they're cleaned and re-oiled rather than replaced. K&N publishes a service interval of 50,000 miles under normal street driving.

How do I confirm it fits my car?

Confirm your car has the M278 4.7L biturbo V8 — the engine code decides fitment, not the badge. Covered chassis are listed in the table above.

BenzUnited Parts • Mercedes Performance Specialist • Ships from USA
