1995-2000 Mercedes C230 Kompressor C280 C220 W202 Stainless Steel Braided Brake Lines – Brake Line Upgrade Kit

$150.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Steel Braided Brake Lines for Mercedes W202 — Improved Pedal Feel & Control

Stainless steel braided brake lines for Mercedes W202 C-Class

Upgrade your braking performance and pedal consistency. OEM rubber lines expand under pressure, creating a soft or “spongy” pedal feel during hard braking. These stainless-steel braided brake lines eliminate expansion, giving you firmer pedal response, improved braking precision, and increased confidence on the street or track.

Why Upgrade to Braided Brake Lines?

Eliminates spongy brake pedal feel under heavy braking
Sharper pedal modulation and shorter stopping distances
Improved durability vs. OEM rubber hoses
Ideal for spirited driving, performance builds, and track use

Premium Construction

PTFE-lined inner hose for high heat and pressure resistance
Stainless-steel outer braid prevents expansion under load
Stainless fittings (not zinc-plated like low-cost competitors)
Lifetime durability with corrosion-resistant materials

U.S. Market Fitment

Compatible with the following U.S.-spec Mercedes-Benz W202 models:

Model	Engine	Years
C220 (W202)	M111	1994–1996
C230 (W202)	M111	1997–2000
C230 Kompressor (W202)	M111K	1999–2000
C280 (W202)	M112 V6	1998–2000

Not compatible with C36 AMG or C43 AMG.

Customize Your Style

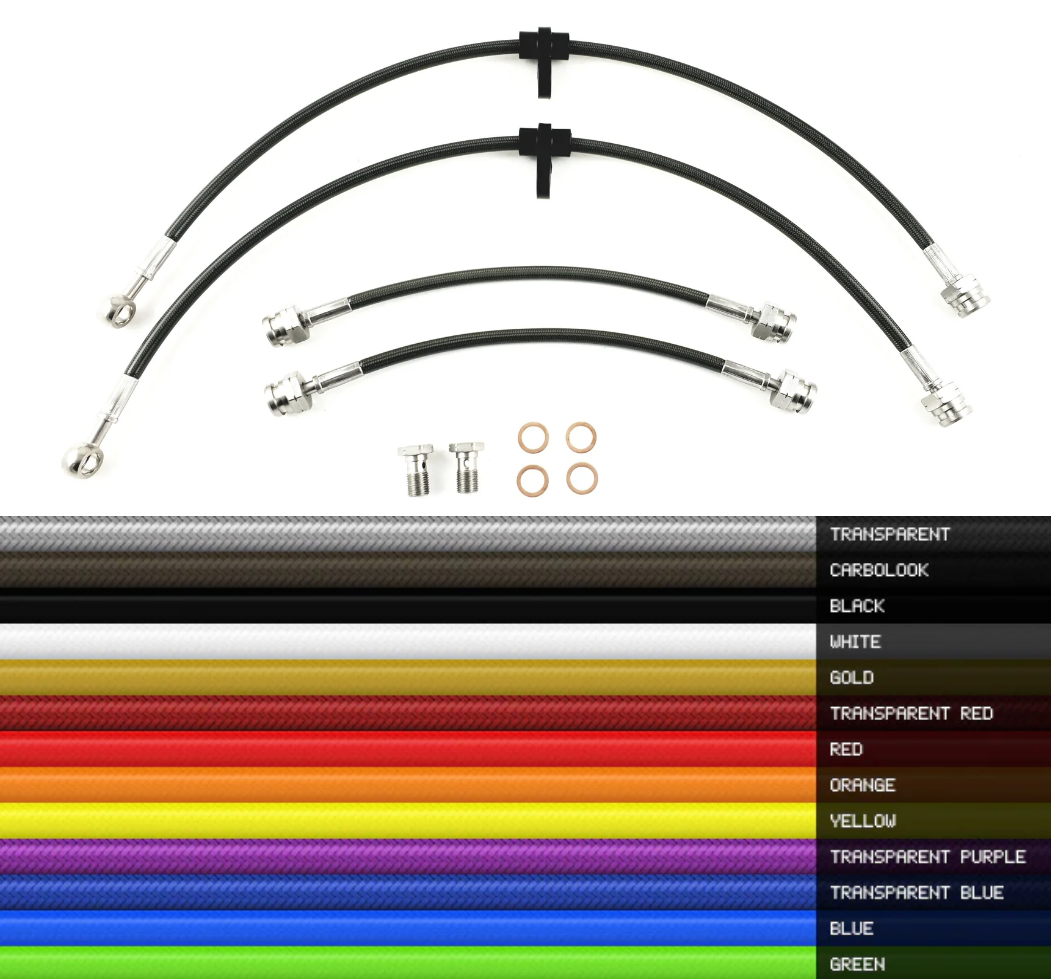

Available in multiple colors — choose the finish that matches your build.

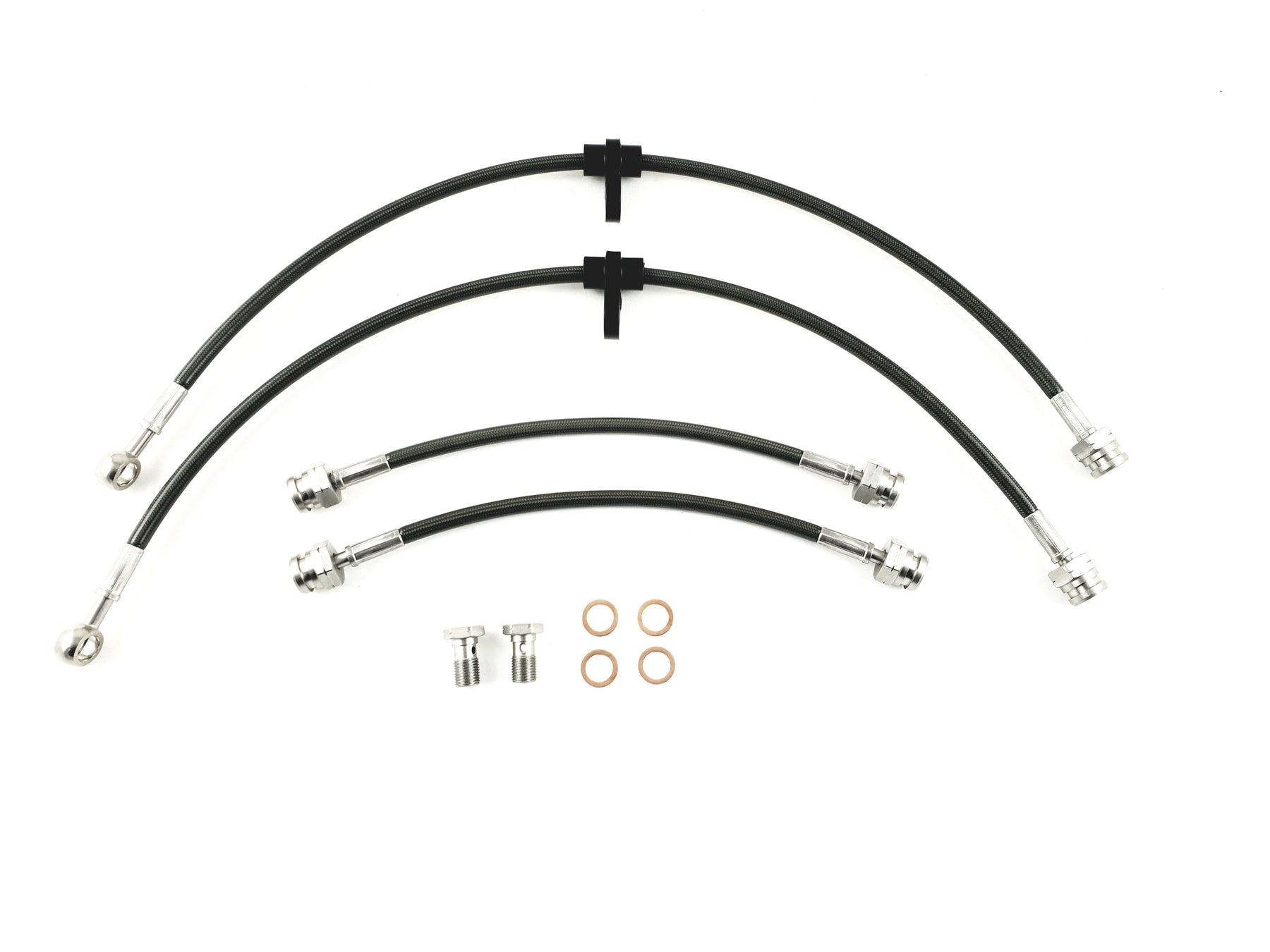

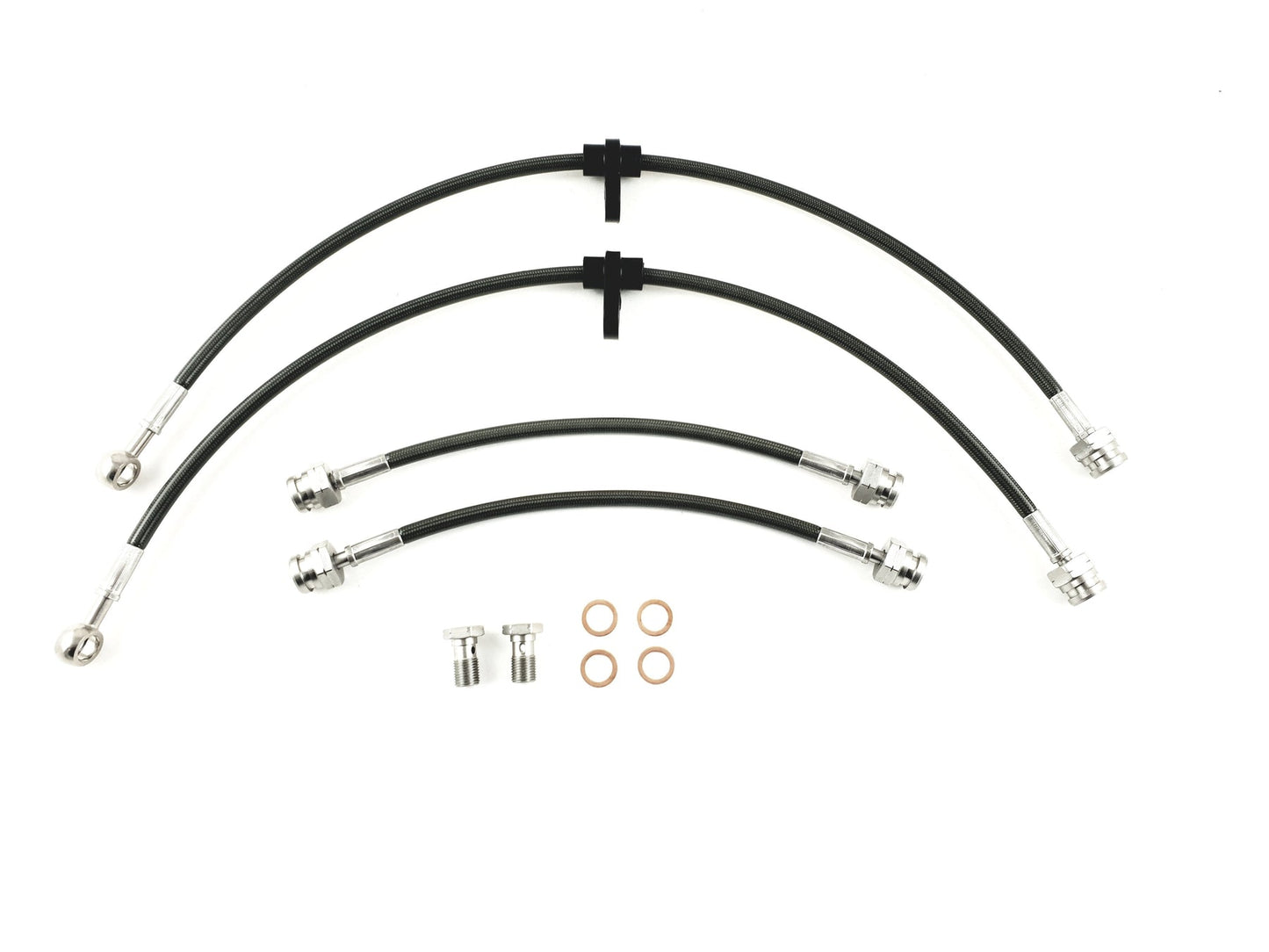

Kit Includes:

✔ 4 Stainless-steel braided brake lines
✔ Stainless banjo bolts (if required)
✔ Copper crush washers (if required)

Technical Specifications

Specification	Details
Inner Material	PTFE
Outer Material	Stainless Steel Braid w/ PVC Cover
Fitting Material	Stainless Steel (303/304)
Temp Range	-70°C to 260°C
Inside Diameter	3.5mm
Outside Diameter	7.5mm
Working Pressure	290 Bar (4206 PSI)
Burst Pressure	870 Bar (12,618 PSI)
Minimum Bend Radius	38mm
