M156 Long Tube Headers – S63 & CL63 AMG (W221 / C216) Performance Upgrade
M156 Long Tube Headers – S63 & CL63 AMG (W221 / C216) Performance Upgrade
Couldn't load pickup availability

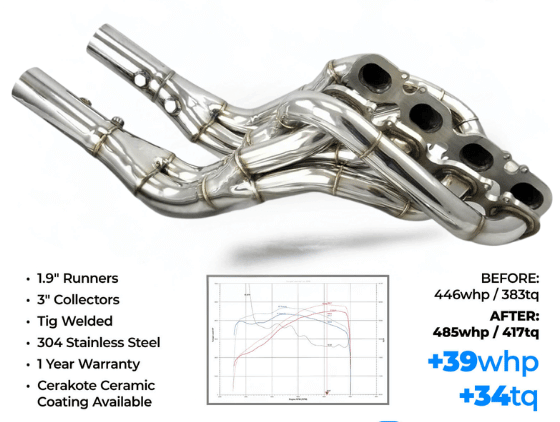

M156 Long Tube Headers for S63 & CL63 AMG (W221 / C216)
Unleash your 6.2L AMG’s potential with our M156 Long Tube Headers, engineered for airflow gains, improved scavenging and performance across the powerband. Built from TIG-welded T-304 stainless steel, these headers are designed exclusively for the W221 S63 AMG and C216 CL63 AMG platforms.
Key Features

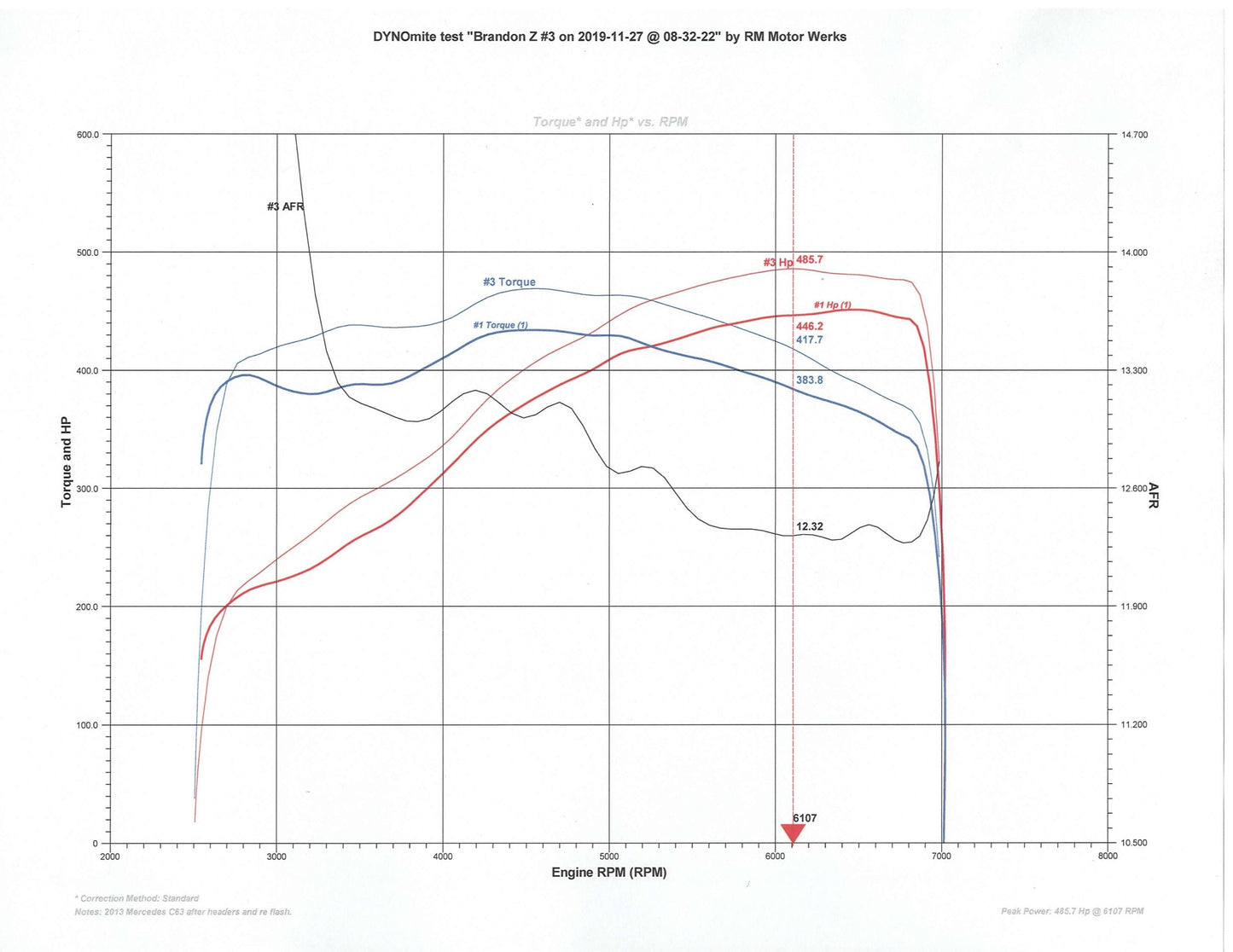

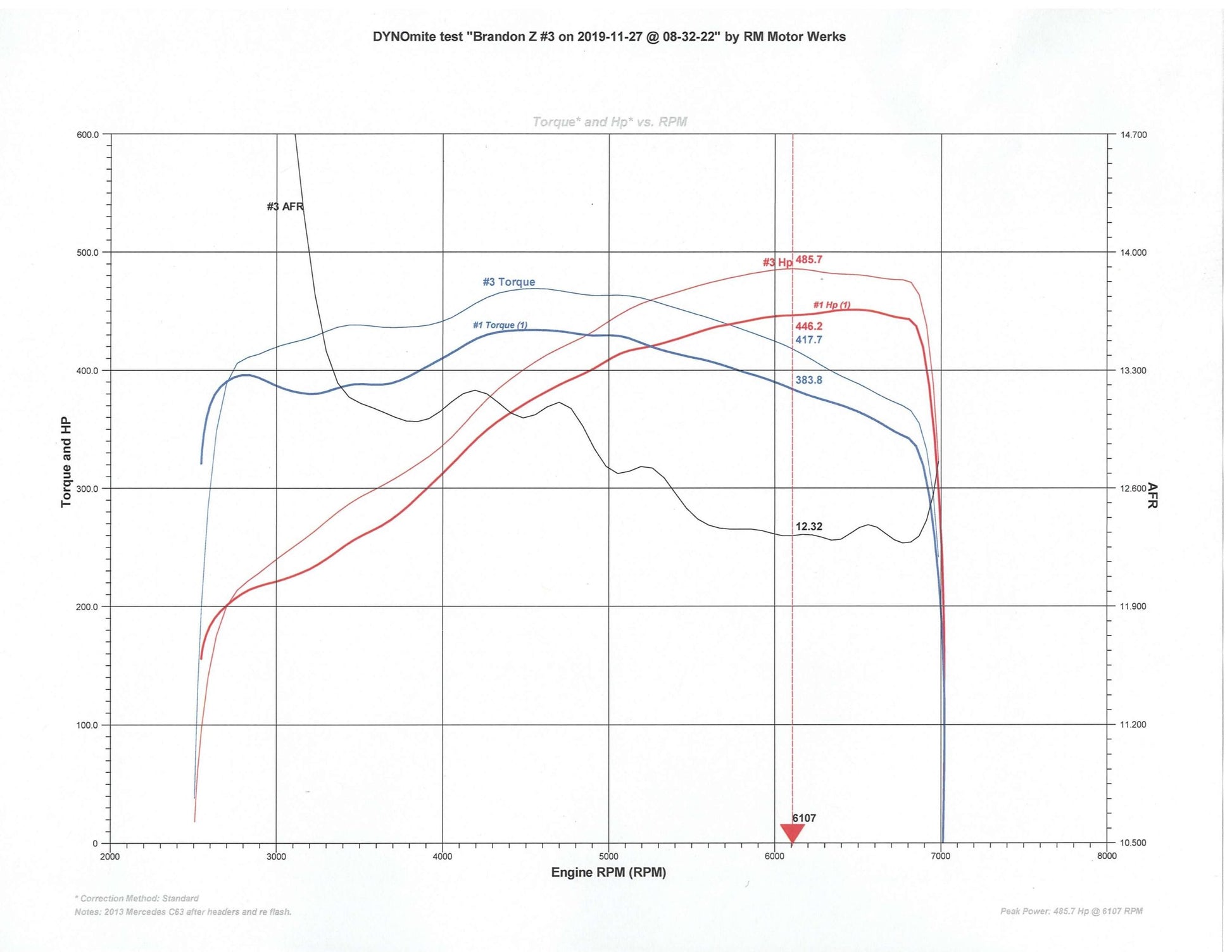

- +39 WHP / +34 lb-ft confirmed through dyno testing
- TIG-welded T-304 stainless steel for strength and heat resistance
- Long-tube design optimises velocity and scavenging efficiency
- Midsection X-pipe included for a complete high-flow system
- Precision engineered for W221 S63 and C216 CL63 AMG M156 platforms
- Enhanced exhaust tone — deeper, sharper AMG sound
Compatibility
| Model | Chassis | Years |
|---|---|---|
| S63 AMG | W221 | 2008–2011 |
| CL63 AMG | C216 | 2008–2011 |
How Our Three Header Styles Compare
| Shorty | Mid-Length | Long Tube | |
|---|---|---|---|
| Power bias | Low & mid-range | Mid-range into top end | Top end |
| Factory cats | Retained | Removed | Removed |
| Road legal | Retains emissions equipment | No — off-road only | No — off-road only |
| Install | Bolt-on, no welding | Welding required | Welding usually required |
| Price band | Lowest | Middle | Highest |
This is the W221 / C216 long tube. The C63 / E63 / CLS63 version is a different part. We do not currently offer a shorty header for the S63 / CL63 — browse all M156 parts.
You will likely need: O2 sensor extension harness
Long tubes move the rear (post-cat) oxygen sensors well away from the factory harness. Our 24″ O2 sensor extension harness covers the gap with no cutting or splicing. You will need two. Far cheaper to add now than to put the car back on the lift.
Performance Benefits
- Increased exhaust flow and scavenging efficiency
- Improved throttle response and stronger midrange torque
- Reduced backpressure for cooler, more efficient engine operation
- Aggressive, deep AMG sound without rasp
- Maximise gains with an M156 Custom ECU Tune
Why Choose BenzUnited Performance?
- Made in the USA — precision welds and proven fitment
- Designed by real AMG specialists
- Fast insured worldwide shipping
- Installation guidance and performance support available
